| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1set |
| Giá bán: | có thể đàm phán |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Energy Consuption: | low consumption | Processing Customization: | Yes |
|---|---|---|---|
| Loading Method: | Crane | Keyword: | Dumping station |
| Operation: | Manual or Automatic | Shipping Type: | By shipping/air etc. |
| Noise Level: | Low | Plc Control: | Can be selected |
| Power Requirements: | 460V, 3 Phase | Operation Type: | Control Box/control Cabinet /PLC |
| Làm nổi bật: | Low Maintenance Bulk Bag Unloader,Fast Bulk Bag Unloader,Practical Bulk Bag Unloader |
||
Product description
The open-type ton bag unloading station is a device used for unloading ton bag materials. Its overall structure is usually designed as an open frame, which is convenient for the hoisting and placement of ton bags. When unloading, the ton bags are suspended on the support, and the bottom unloading port is aligned with the lower receiving device. The bag opening can be opened manually or mechanically, and the materials can smoothly fall into the storage bin, conveying equipment, etc. by gravity. It features high unloading efficiency, convenient operation, and suitability for various granular or powdered materials. It is often used in the material transfer unloading scenarios of the chemical, grain, building materials and other industries.
Working principle
The open bulk bag unloading station lifts the bulk bags to the support by cranes. After the bottom unloading port is aligned with the receiving device, the bag opening is opened manually or mechanically. The materials fall into the equipment below by gravity. Vibrators are used to prevent cawing. After unloading is completed, the empty bags are lifted away. It is suitable for bulk material unloading in the chemical, grain and other industries.
Features & Benefits
Features of the open bulk bag unloading station:
- Open frame, convenient for loading and unloading ton bags
- Gravity discharge, equipped with a vibrator to prevent clogging
- The discharge port is compatible with a variety of receiving devices
- Simple structure and low maintenance cost
- It features high unloading efficiency and is suitable for batch operations
| Bag size application | 1000x1000x1600 mm |
| Power Source | AC 380 v ± 5%50 Hz |
| Air source pressure | ≥ 0.6MPa |
| Air consumption | ≤ 0.6 m ³/min |
| wind volume for dust-removal | 800-2500m3/h |
| Environment humidity | -100C-400C |
| Cutting capacity | 10-20 bags/h (manual) |
Detail display

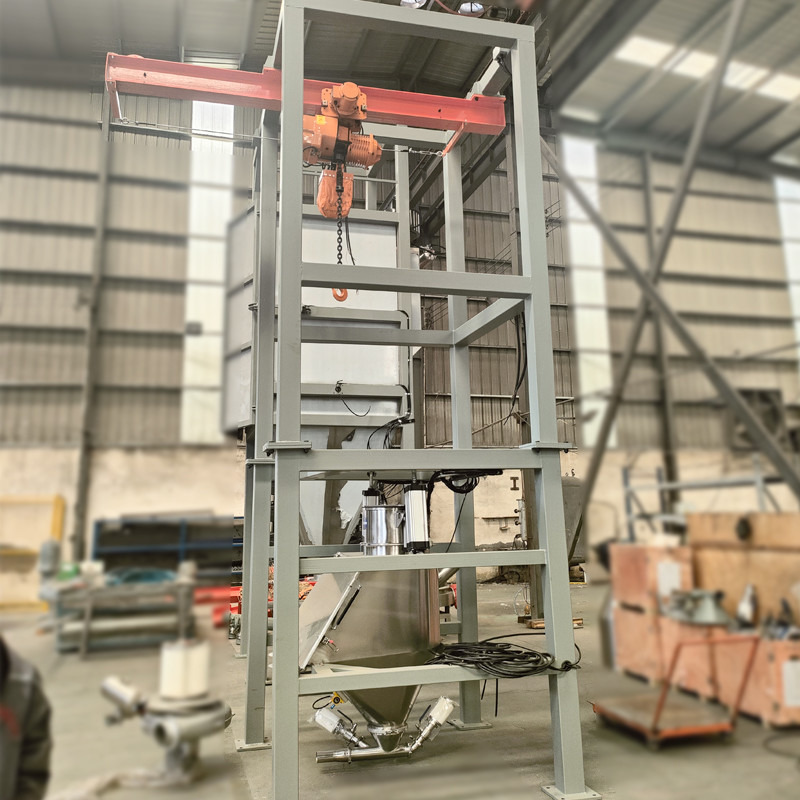

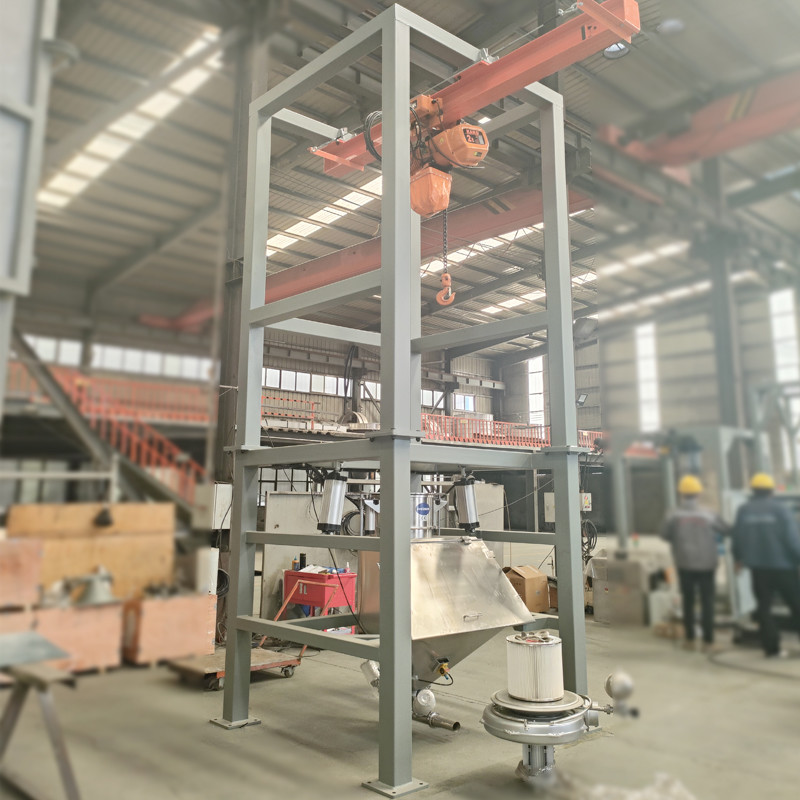

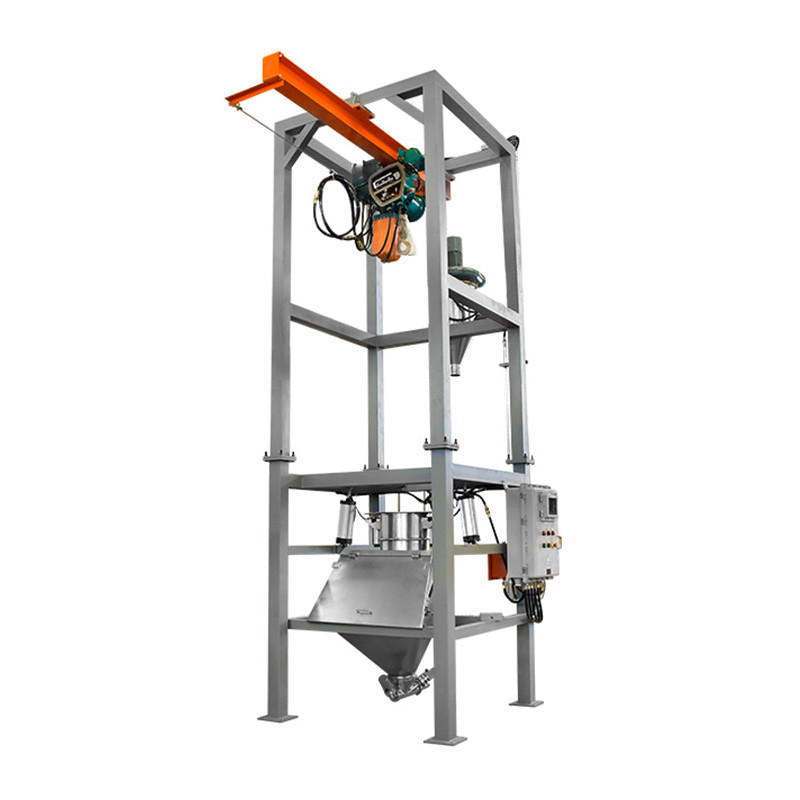

Product Shows
Application
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
