| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | EVERSUN MACHINERY |
| Chứng nhận: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1 set |
| Giá bán: | có thể đàm phán |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Movement: | Simulate artificial screening motion | Application: | Powder, Granules, Liquid, Slurry, etc. |
|---|---|---|---|
| Advantage: | Precision screening and mass production | Screening Accuracy: | ≥95% |
| Motor: | Vertical Vibrating Motor | Cleaning System: | Bouncing Ball Cleaning System/ultrasonic |
| Screening Layers: | 1-5 layers | Keywords: | Swing Vibrating Sieve Machine |
| Special Design: | Accept | Noise Level: | Low |
| Condition: | New | Customized: | Acceptable |
| Supporting Device: | Coil Spring |

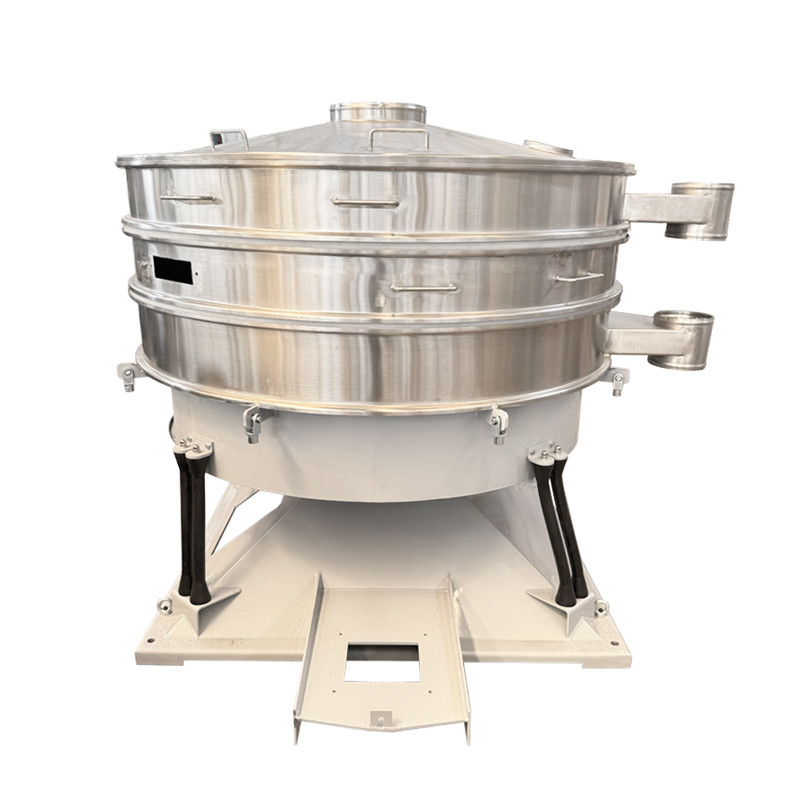

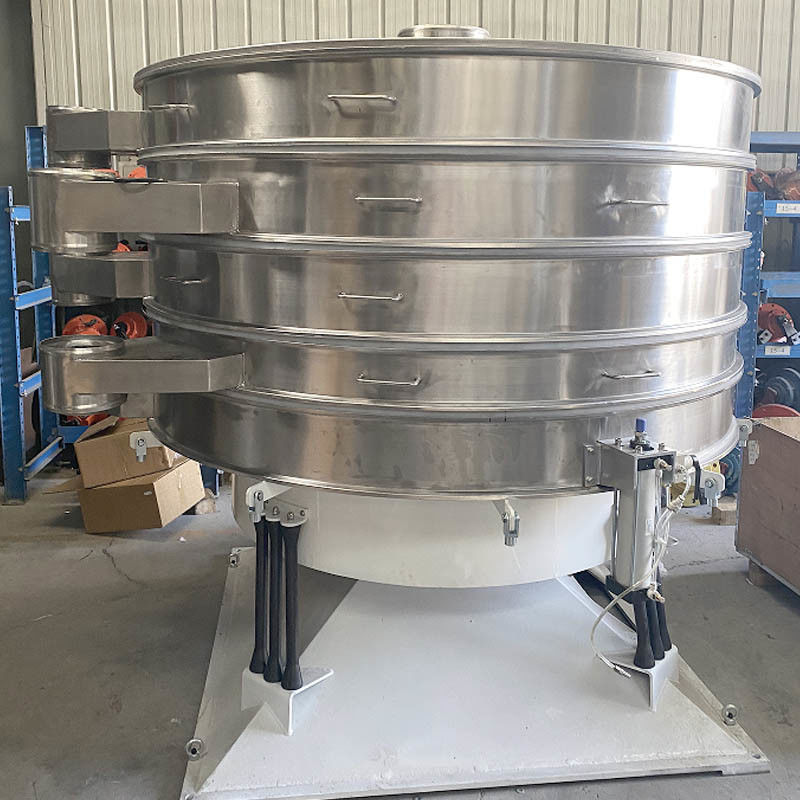

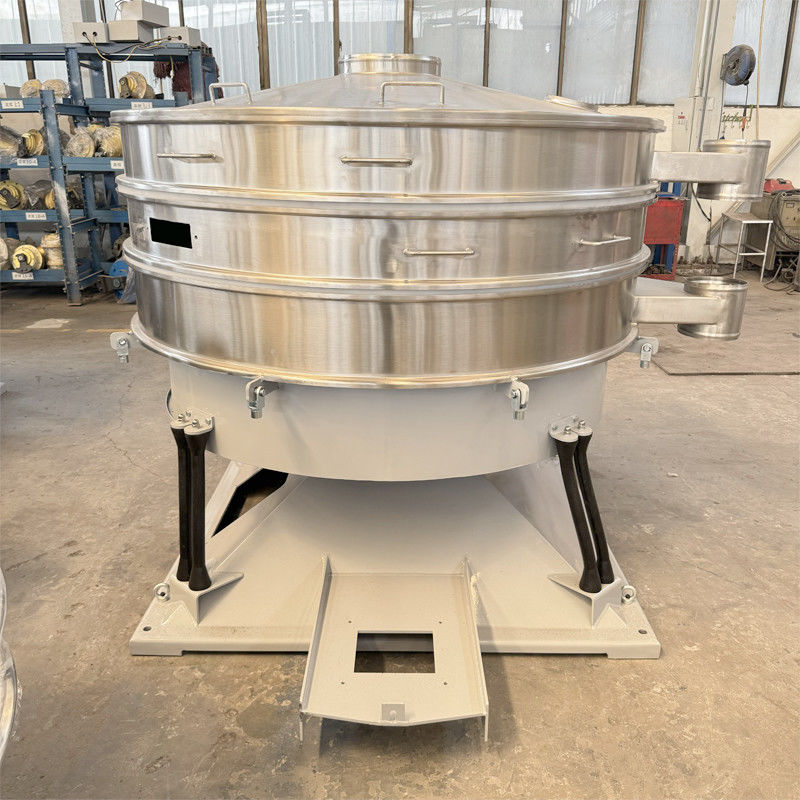

Product Introduction
The swing screen is a screening device that simulates the actions and processes of manual screening. Through the driving device, the screen surface is made to generate three-dimensional compound movements of horizontal, vertical and inclined. The materials move forward in a spiral shape and perform elliptical movements on the screen surface, thus achieving precise screening. It features high screening efficiency, high precision (reaching over 95% screening efficiency), and large processing capacity. It is suitable for the classification operation of fine particle materials in multiple industries such as chemical engineering, food, and mining. Moreover, the screen is easy to replace, the operating noise is low, and it can effectively reduce material blockage and damage. It is one of the ideal devices for achieving fine screening.
Working principle
The working principle of the swing screen is to make the screen surface generate a three-dimensional compound motion of horizontal circular motion, vertical up and down motion and inclined swing through the driving device, so that the material forms an elliptical spiral motion trajectory on the screen surface. Horizontal movement spreads the materials evenly, vertical movement prompts fine particles to penetrate the screen, and inclined swaying pushes coarse particles to spiral forward and be discharged. This simulated manual screening action of "rubbing and turning" not only extends the contact time between the materials and the screen but also achieves efficient screening through a gentle movement trajectory, reducing clogging and damage. It is suitable for fine classification scenarios.
Product Features
1. High precision: Fine screening of 0.074-5mm, with an accuracy of over 95%.
2. Large processing capacity: The spiral trajectory makes the production capacity 30% higher than that of traditional screens.
3. Durable screen mesh: Low wear, service life extended by 50%-80%.
4. Low noise and environmentally friendly: Noise ≤75dB, with little dust.
5. Strong adaptability: The trajectory is adjustable and supports 2-5 layers of multi-granularity classification.
6. Easy maintenance: Modular design reduces maintenance time.
7. Dual breakthroughs in precision and efficiency: Three-dimensional motion achieves a balance between "high-precision screening and large processing capacity".
8. Wider material adaptability: Especially suitable for high-viscosity, fine-grained and fragile materials that are prone to jamming in traditional screening machines.
9. Lower comprehensive cost: Energy-saving, low maintenance, quick network replacement, and reduced long-term usage cost.
10. Strong scene adaptability: From small-batch production in the laboratory to large-scale industrial production, efficient screening can be achieved through parameter adjustment.
Product Parameter
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5
|
600mm |
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67 |
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
Application
Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
Why choose us
About us
FAQ
Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.
Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
