Place of Origin: | CHINA |
---|---|
Hàng hiệu: | EVERSUN |
Chứng nhận: | ISO,CE |
Model Number: | EDS |
Minimum Order Quantity: | 1set |
Giá bán: | có thể đàm phán |
Packaging Details: | Standard export wooden cases |
Delivery Time: | within 7-15 work days |
Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
Supply Ability: | 5000set/year |
Maintenance: | Low | Conveying Distance: | Customized |
---|---|---|---|
Safety Features: | Dust Control System | Customization Options: | Available |
Working Temperature: | -20~45℃ | Voltage: | 110-480V |
Advantage: | High degree of automation | Dimension: | Customized |
Dedusting System: | Yes | Customzied Service: | Support |
Application: | Bulk material handling, food processing, chemical processing | Material: | Stainless Steel |
Làm nổi bật: | Eco-friendly Bulk Bag Unloader,Sealed Bulk Bag Unloader,Granular Bulk Bag Unloader |
Product description
The dust-free feeding station is a highly specialized material handling equipment, specifically designed to address the issue of dust pollution caused by manual feeding of powdery and granular materials. Through its sealed design, efficient filtration system, and negative pressure suction device, it quickly adsorbs and filters the dust during the feeding process, ensuring a clean and dust-free operating environment. It not only effectively protects the health of operators and avoids material waste but also prevents potential safety hazards such as dust explosions. It is widely used in industries with extremely high cleanliness requirements, such as chemical, food, and pharmaceutical industries, significantly enhancing the safety of material handling and the environmental friendliness of the production environment.
Working principle
The dust-free feeding station prevents dust from spilling out through a sealed structure. It uses a negative pressure suction device to create a negative pressure inside, which sucks the dust generated during feeding into the filtration system. The dust is intercepted by the filter core, and the purified air is discharged. Some equipment can also clean the dust accumulated on the filter core by pulse reverse blowing. At the same time, with the help of devices such as vibrating screens, it ensures smooth material discharge and achieves dust-free feeding.
Features & Benefits
1. Efficient Dust Removal: The sealed negative pressure system is combined with a highly precise filtration device, achieving a dust collection efficiency of over 99%. This creates a clean production environment and prevents dust from spreading and polluting.
2. Safety Protection: The fully enclosed structure prevents dust from spilling out, reducing the risk of dust explosion, and minimizing the contact of operators with harmful dust, thus safeguarding occupational health.
3. Convenient Operation: With user-friendly design, it features one-button start/stop and automatic dust cleaning functions. The operation process is simple and easy to understand, reducing the difficulty and labor intensity of manual operation.
4. Flexible Adaptability: It supports the feeding of various materials and different packaging forms, and can be seamlessly connected with upstream and downstream equipment such as conveyors and meters, meeting diverse production needs.
5. Long-lasting Durability: Using high-quality corrosion-resistant and wear-resistant materials, combined with a sturdy structural design, it can adapt to harsh working conditions, reduce equipment failures, and extend service life.
6. Cost Savings: It effectively avoids material loss due to dust flying, reduces the manpower and time costs for cleaning the workshop dust, and lowers the frequency of filter component replacement, saving maintenance expenses.
Product parameter
Model | Feeding port diameter | Power of blower | Air pressure of blower |
EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Detail display

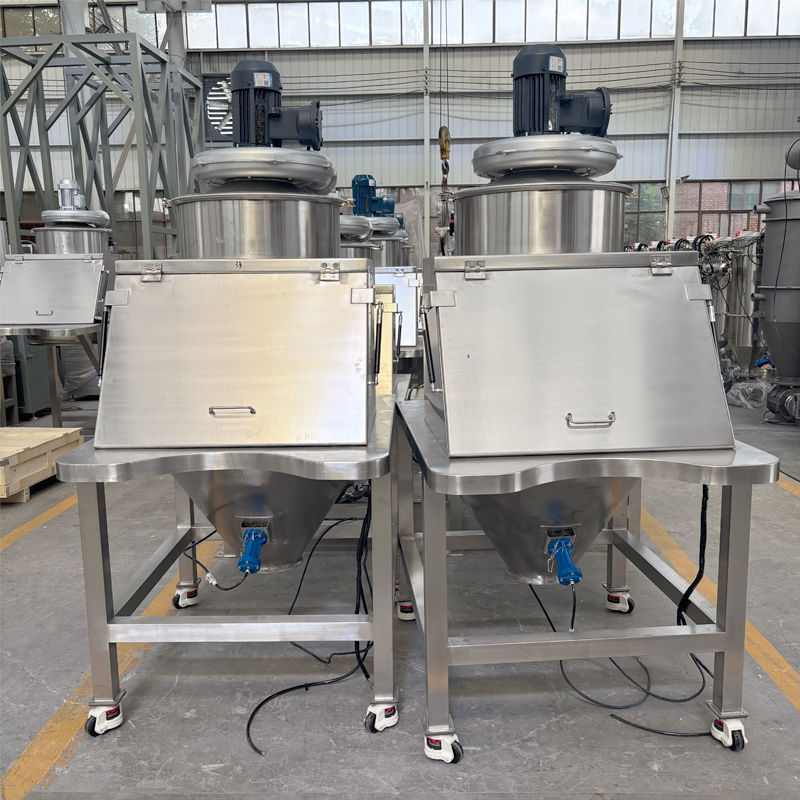

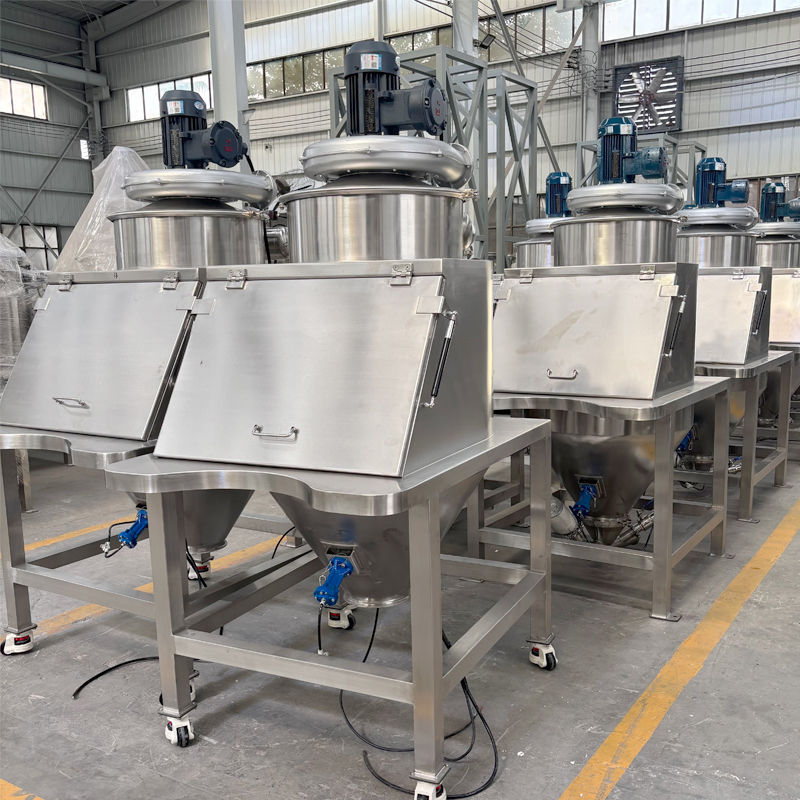

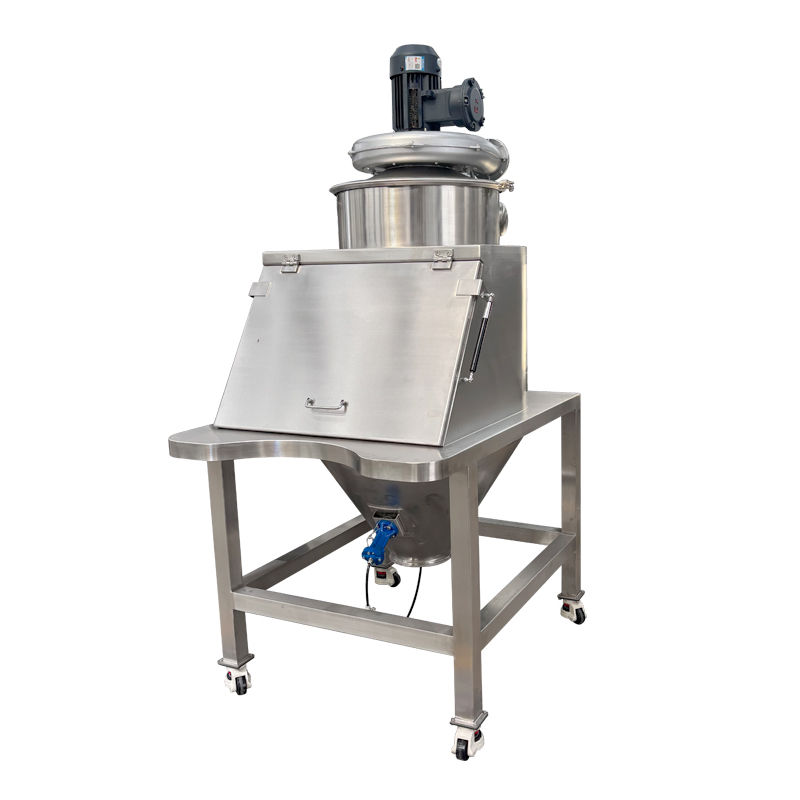

Product display
