| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | EDS |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000 bộ / năm |
| BẢO TRÌ: | Thấp | Khoảng cách vận chuyển: | Tùy chỉnh |
|---|---|---|---|
| Tính năng an toàn: | Hệ thống kiểm soát bụi | Tùy chọn tùy chỉnh: | Có sẵn |
| Nhiệt độ làm việc: | -20～45oC | Điện áp: | 110-480v |
| Lợi thế: | Mức độ tự động hóa cao | Kích thước: | Tùy chỉnh |
| hệ thống khử bụi: | Đúng | dịch vụ tùy chỉnh: | ủng hộ |
| Ứng dụng: | Xử lý vật liệu khối, chế biến thực phẩm, chế biến hóa học | Vật liệu: | Thép không gỉ |
| Làm nổi bật: | dust-free bulk bag unloader,industrial bulk bag unloader with filtration,bulk bag unloader filtration system |
||
Product description

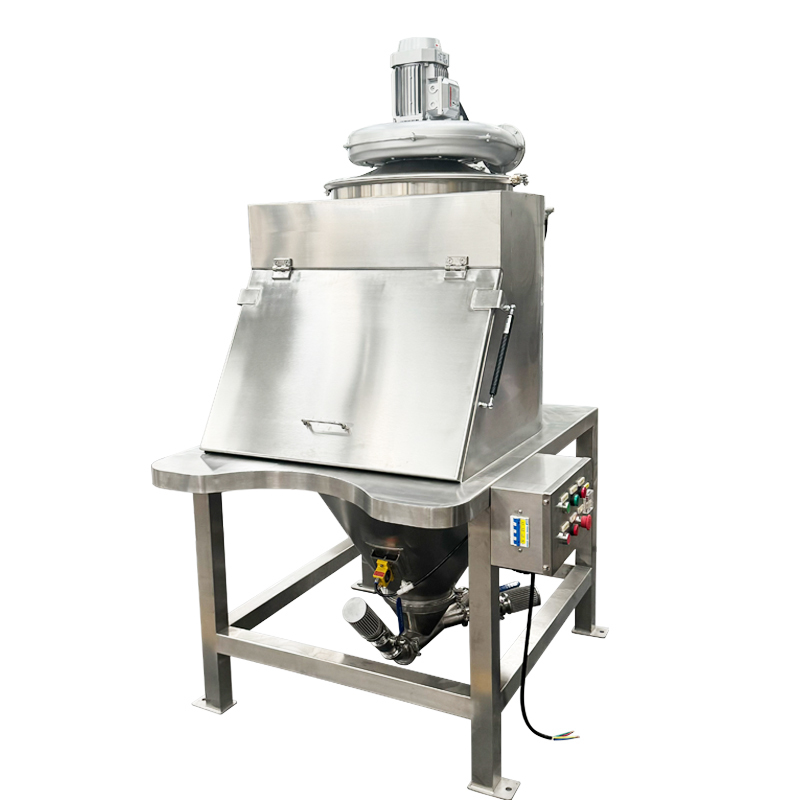

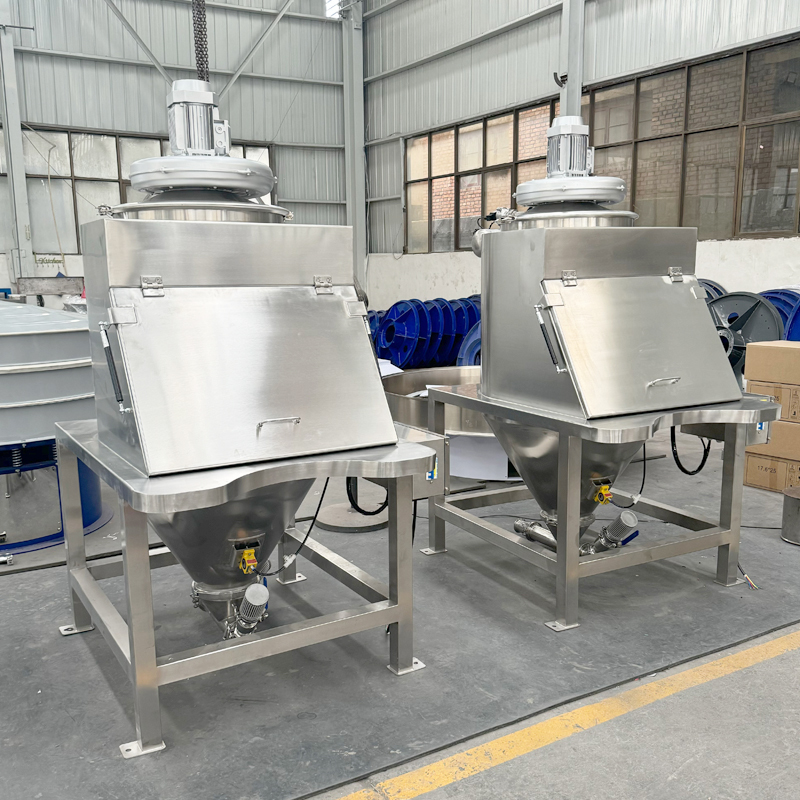

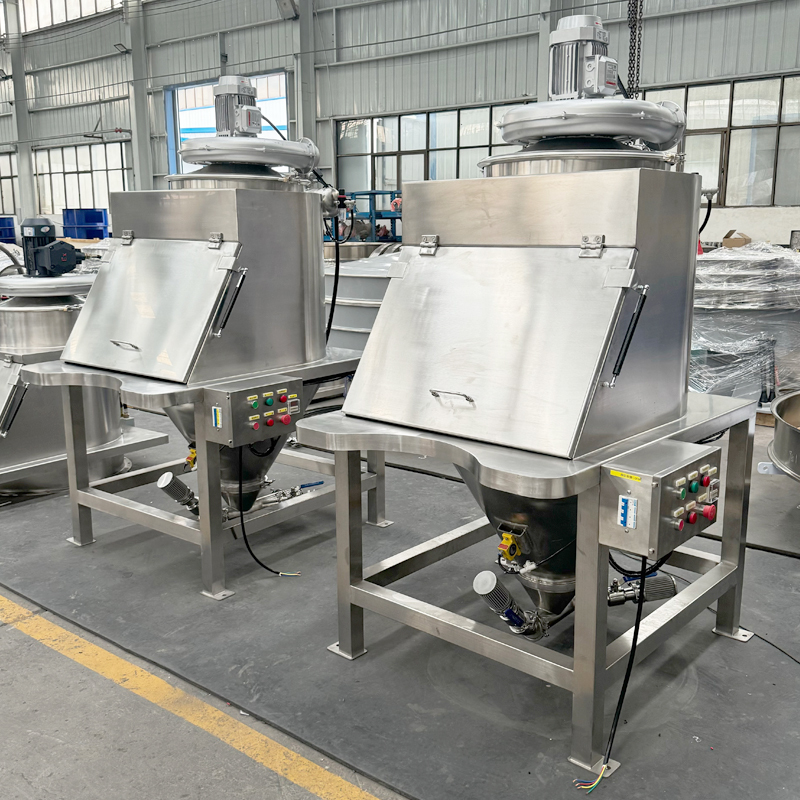

The dust-free feeding station is an environmental protection equipment for feeding powder and granular materials. It solves the problem of dust flying in traditional feeding through a sealed cavity and a negative pressure dust collection system. After the materials enter the closed space, the generated dust is captured in time and the clean air is discharged up to standard after being filtered by the filter core. It is suitable for bagged and bucketed materials and is widely used in the chemical, pharmaceutical and other industries to ensure health and dust-free production.
Working principle
The dust-free feeding station achieves dust-free feeding through "sealed isolation, negative pressure dust collection, and filtration purification". The sealed cavity blocks the spread of dust. The built-in negative pressure system creates negative pressure inside the cavity, capturing the dust generated during feeding and introducing it into the filtration device. The dust is intercepted by the filter screen, and the clean air is discharged by the fan (or recirculated internally). Some equipment is equipped with vibration and dust cleaning devices to enhance stability and dust-free performance.
Features & Benefits
1. Highly efficient dust control. Through the triple guarantees of enclosure, negative pressure and filtration, it significantly reduces dust dispersion, protecting the environment and personnel health.
2. Highly adaptable. It can be used for various materials such as bagged and barrelled ones. It can be equipped with vibration and dust cleaning devices to prevent blockage and enhance efficiency.
3. Energy-saving and environmentally friendly. With a partial internal air circulation design, it has low energy consumption and meets emission standards. The operation and maintenance are convenient.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
