| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN MACHINERY |
| Chứng nhận: | ISO,CE |
| Số mô hình: | EYBS |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Gói gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây, Moneygram, L/c |
| Khả năng cung cấp: | 5000 giải quyết/năm |
| Sự chuyển động: | chuyển động ba chiều | Hiệu quả sàng lọc: | lên tới 90 ~ 99% |
|---|---|---|---|
| Hoạt động: | Tự động | Phương pháp làm sạch màn hình: | Bóng nảy/hệ thống siêu âm |
| Đặc trưng: | Hiệu quả cao, tiếng ồn thấp, dễ bảo trì | lò xo giảm chấn: | lò xo cách ly rung cao su |
| Các ngành công nghiệp áp dụng: | Trang trại, bán lẻ, cửa hàng thực phẩm, cửa hàng in ấn | Chức năng: | Lọc, làm sạch và phân loại |
| Màu sắc: | Yêu cầu của khách hàng | Phương pháp làm sạch lưới: | quả bóng nảy |
| Tùy chỉnh: | Có sẵn | Xử lý bề mặt: | Phun cát, đánh bóng, sơn, vv |
| thiết bị hỗ trợ: | Mùa xuân cuộn dây | Lớp: | 1~5 |
| Tình trạng: | Mới |

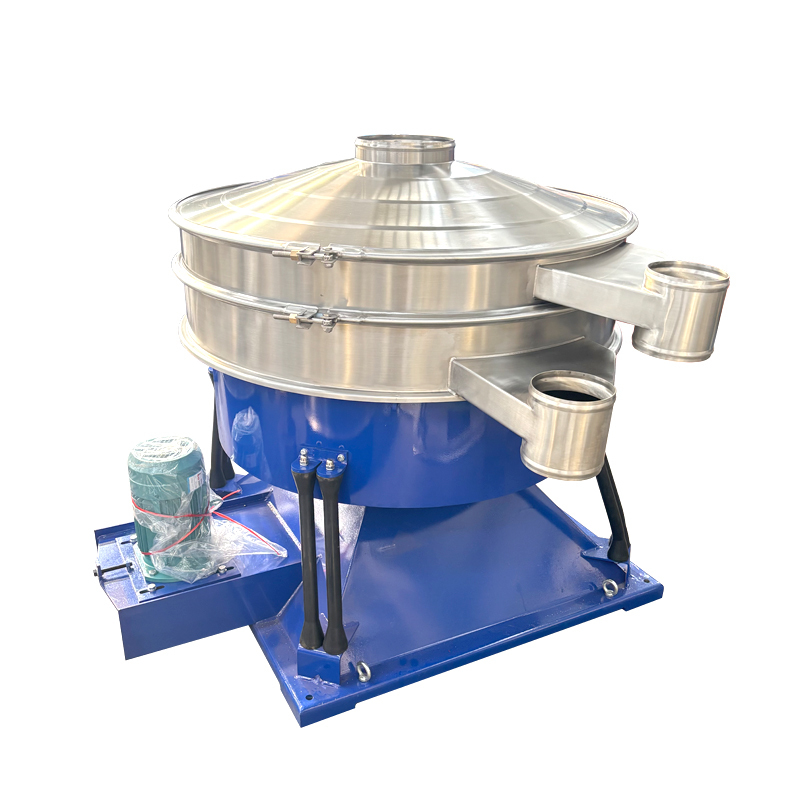

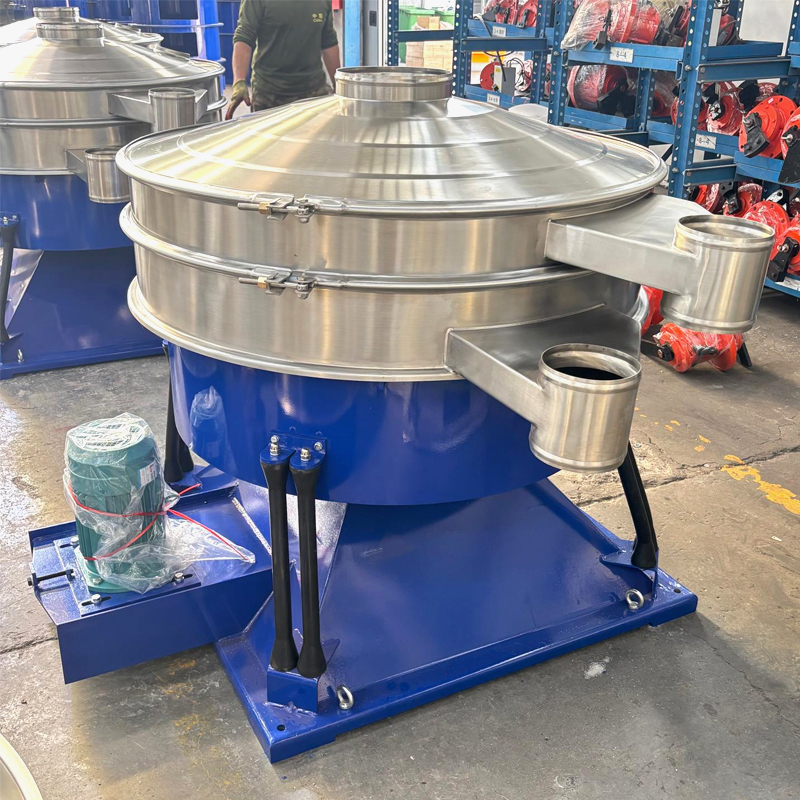

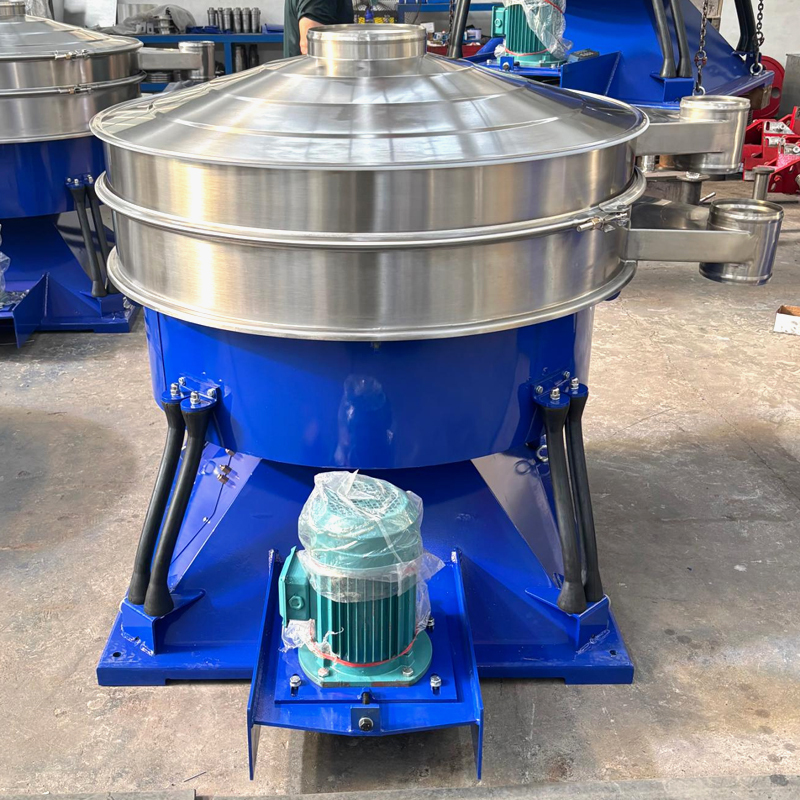

Product Introduction
The circular vibrating screen is an efficient and precise screening equipment. It adopts a three-dimensional motion trajectory similar to that of "human-like vibration", which combines horizontal, vertical and inclined movements. The vibrating screen body performs periodic oscillation driven by the eccentric shaft.
It has a high screen surface utilization rate and a large processing capacity. It can achieve multi-layer classification with 1 to 5 layers. The screening accuracy can reach over 95%. It can effectively reduce the occurrence of net blockage and is suitable for various materials such as powders and granular materials. It is widely used in fields like food, chemical industry, and mining, and is particularly suitable for scenarios with high requirements for screening efficiency and accuracy.
Working principle
The circular vibrating screen is powered by an eccentric shaft as its core. The motor drives the eccentric shaft to rotate, converting the circular motion into a three-dimensional motion of the screen body, which includes horizontal rotation, vertical vibration and inclined swinging.
The materials are evenly distributed on the screen surface and move towards the edge. Materials smaller than the screen holes pass through the screen for classification, while materials larger than the screen holes are discharged from the outlet. At the same time, the three-dimensional movement can reduce screen blockage and is compatible with multi-layer screen nets to achieve multi-stage screening.
Product Features
1. High screening efficiency: The three-dimensional composite motion enables uniform dispersion of materials and rapid screening. The processing capacity is higher than that of ordinary vibrating screens, and the screen surface utilization rate is fully achieved.
2. High precision: The screening accuracy can reach over 95%, enabling precise separation of materials of different particle sizes and meeting the requirements of fine classification.
3. Few clogging: The motion trajectory similar to manual swinging reduces the retention of materials in the sieve holes, effectively reducing the probability of clogging and reducing the cleaning frequency.
4. Strong adaptability: 1-5 layers of screen nets can be set to achieve multi-level classification. It can handle various materials such as powders and granular materials, and is suitable for multiple fields including food, chemical, and mining.
5. Stable operation: The motion trajectory is smooth, causing little wear on the materials, with low equipment noise and long service life.
Product Parameter
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5
|
600mm |
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67 |
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
Production line diagram
Application
Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
Why choose us
About us
FAQ
Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.
Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
