High-Frequency Screen for Fine Material Processing in Mining and Building Materials

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: EVERSUN MACHINERY
Chứng nhận: ISO,CE
Số mô hình: GPS
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: có thể đàm phán
chi tiết đóng gói: Gói gỗ xuất khẩu tiêu chuẩn
Thời gian giao hàng: trong vòng 5-15 ngày làm việc
Điều khoản thanh toán: T/T, Liên minh phương Tây, Moneygram, L/c
Khả năng cung cấp: 5000 giải quyết/năm
Thông tin chi tiết
Vật liệu: Thép không gỉ Khung màn hình: Thép không gỉ
Bảo hành: 1 năm Từ khóa: Màn hình rung
Kiểu: Hình tròn Thuận lợi: Máy sàng lọc độ chính xác cao
Dịch vụ Tùy chỉnh: Ủng hộ Cách sử dụng: Phân loại bột, lọc chất lỏng
Thích hợp cho: Bột và vật liệu hạt Ứng dụng: Dược phẩm, hóa chất, thực phẩm, mỹ phẩm, v.v.
Điều kiện làm việc: Liên tục Đặc trưng: Dễ dàng tháo rời và sạch sẽ, cường độ rung có thể điều chỉnh, thiết kế nhỏ gọn

Mô tả sản phẩm

High Frequency Screen

Product Description

High-frequency screen is a device that uses high-frequency vibration to achieve fine screening of materials. Its core components include high-frequency vibration motors, screen boxes, and screens. With high vibration frequency and small amplitude, it can effectively overcome the problem of material clogging the screen. It is widely used in the classification, impurity removal or dehydration of fine and ultra-fine materials. Compared with ordinary screening equipment, it has higher screening efficiency and better accuracy, and is widely applied in fields such as mining, building materials, and environmental protection, serving as a key equipment for fine material processing.


Working principle

The working principle of the high-frequency screen is centered on high-frequency and small-amplitude vibration. It is generated by a high-frequency vibration motor or exciter, which is then transmitted through the transmission structure to the screen box and screen mesh. After the fine-grained materials fall onto the screen surface, the high-frequency vibration breaks the adhesion force of the particles, allowing the material layer to be loosely suspended and separated by size and density. The fine particles overcome the friction force and pass through the screen to form the screen bottom product, while the coarse particles are pushed by the vibration force towards the discharge end and are discharged. This achieves fine material classification, impurity removal or dehydration, effectively solving the clogging problem of ordinary screens.


Product

1. Fewer blockages and higher efficiency: High-frequency and low-amplitude vibration can loosen the materials, break the particle adhesion, and allow fine particles to pass through the screen quickly, significantly reducing blockages and improving processing efficiency compared to ordinary screens.
2. Excellent grading accuracy: It can precisely distinguish materials of different particle sizes, meeting the requirements for strict particle size control in various scenarios.
3. Strong adaptability: It can be used for dry grading, wet screening or dehydration, and is suitable for handling fine materials in multiple industries.
4. Low energy consumption and stable performance: Compact structure, low operating noise, low failure rate, and lower energy consumption than ordinary screens with the same processing capacity.

Technical Parameter

Model No. Effective sieve
diameter(mm)
Powder
(KW)
Vibration force Rotary speed
(r/min)
EGPS-600 550 0.55 8000N 3000
EGPS-800 760 0.75 10000N 3000
EGPS-1000 930 1.1 15000N 3000
EGPS-1200 1130 1.5 20000N 3000
Machine can be customized based on your need


Product display

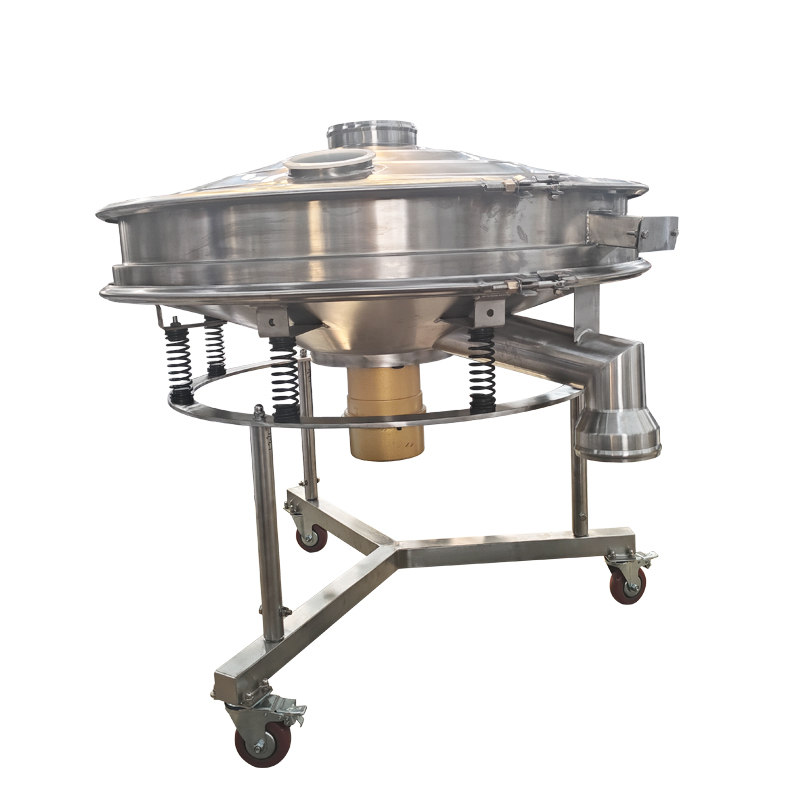

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 0

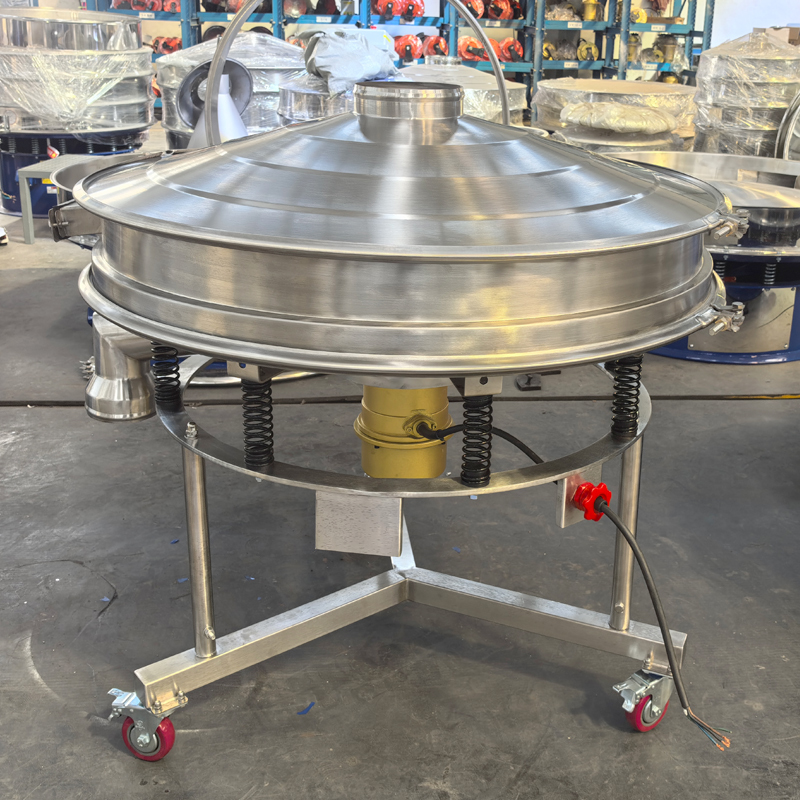

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 1

Application

The 450 liquid filter is suitable for filtration and solid-liquid separation of a variety of materials, including but not limited to the following types of materials:

1. Suspension: Filter solid particles suspended in liquid, such as ore slurry, ceramic suspension, etc.

2. Sewage treatment: remove solid particles and suspended matter in sewage.

3. Chemicals: Filter various chemicals, such as solvents, dyes, pigments, resins, etc.

4. Food and Beverages: Filter liquids such as juice, alcohol, beverages, cooking oils, etc.

5. Pharmaceutical products: filtering liquid medicine, slurry, preparations, etc.

6. Petroleum and chemical industry: filtering crude oil, liquids in the refining process, chemicals, etc.

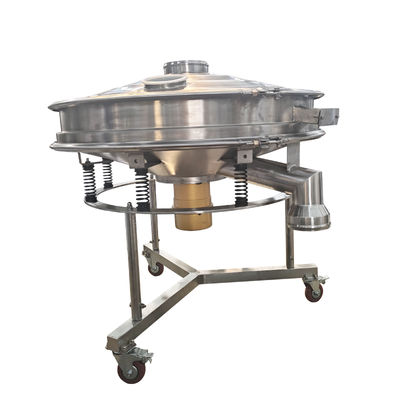

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 2

Packaging and shipping

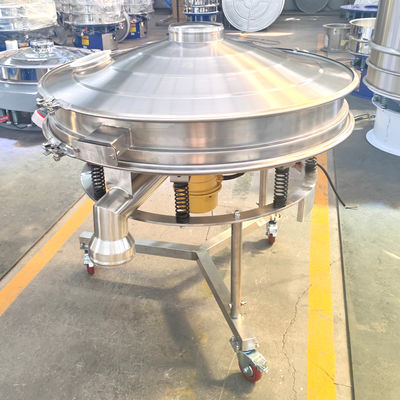

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 3

About us


High-Frequency Screen for Fine Material Processing in Mining and Building Materials 4

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 5

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 6

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 7

High-Frequency Screen for Fine Material Processing in Mining and Building Materials 8

Our factory





We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
