| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | ZKJ |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| Chức năng: | Truyền đạt vật liệu | Vật liệu: | Thép không gỉ |
|---|---|---|---|
| Loại sản phẩm: | Tự động | Đặc trưng: | Không có bụi, tiếng ồn thấp, dễ làm sạch |
| Tiêu thụ không khí: | Thay đổi dựa trên kích thước hệ thống | Mức độ chân không: | Điều chỉnh |
| Dịch vụ tùy chỉnh: | Cung cấp | Bảo hành: | 1 năm |
| Bằng chứng nổ: | Không bắt buộc | Phương pháp truyền tải: | Hút chân không |
| Tùy chọn tùy chỉnh: | Đúng |
Product description
Continuous vacuum feeding machine is an automated equipment that realizes continuous material conveying based on the principle of vacuum negative pressure. It is often used in the pharmaceutical, food, chemical and other industries. It is composed of vacuum pump, material bin, conveying pipeline, filter and other components. It can smoothly suck and convey powder and granular materials from low places or sealed containers, avoiding dust pollution and material loss. The equipment can operate continuously without frequent start and stop, adapt to the production line rhythm, and is easy to clean. It complies with GMP and other industry standards, effectively improving the efficiency of material conveying and the cleanliness of the production environment.
Working principle
The continuous vacuum feeding machine is based on the core principle of vacuum negative pressure adsorption and gas-solid separation. The vacuum pump removes the air in the sealed system to create a negative pressure. By taking advantage of the pressure difference, the powder and granular materials are drawn into the pipeline and sent to the separation chamber. After that, the filter traps the materials and makes them fall into the storage bin. The clean air is then removed, and the materials are continuously discharged through the discharge structure. Each link is seamlessly connected to achieve uninterrupted transportation.
Product features
1. Continuous transportation: Uninterrupted operation, suitable for high-pacing production lines, reducing waiting time;
2. High cleanliness: Fully enclosed system, no dust leakage, no contamination of materials, in line with GMP and other standards;
3. Material-friendly: Gentle airflow transportation, no friction or damage, suitable for powders, granules and special materials, with low loss;
4. Flexible and easy to maintain: Pipelines can be bent, adaptable to complex layouts, simple structure, low failure rate, and convenient maintenance.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |
Product details
Production line diagram

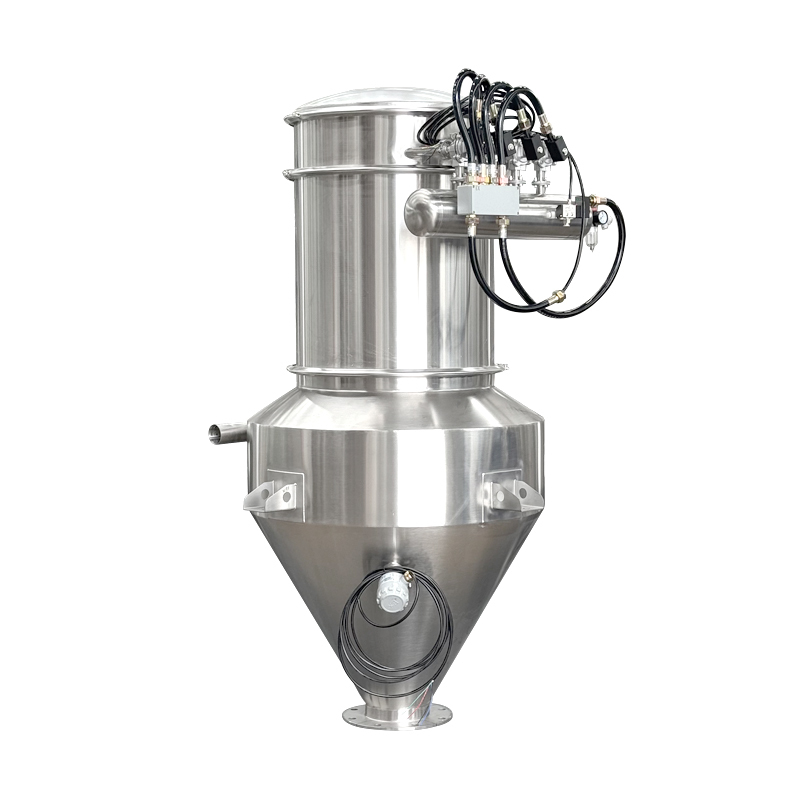

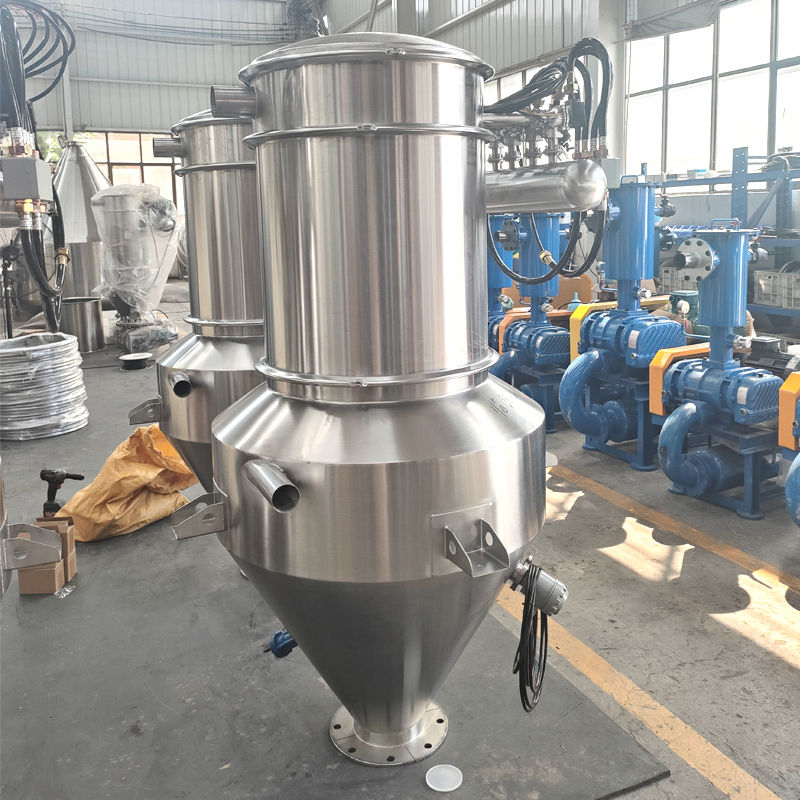

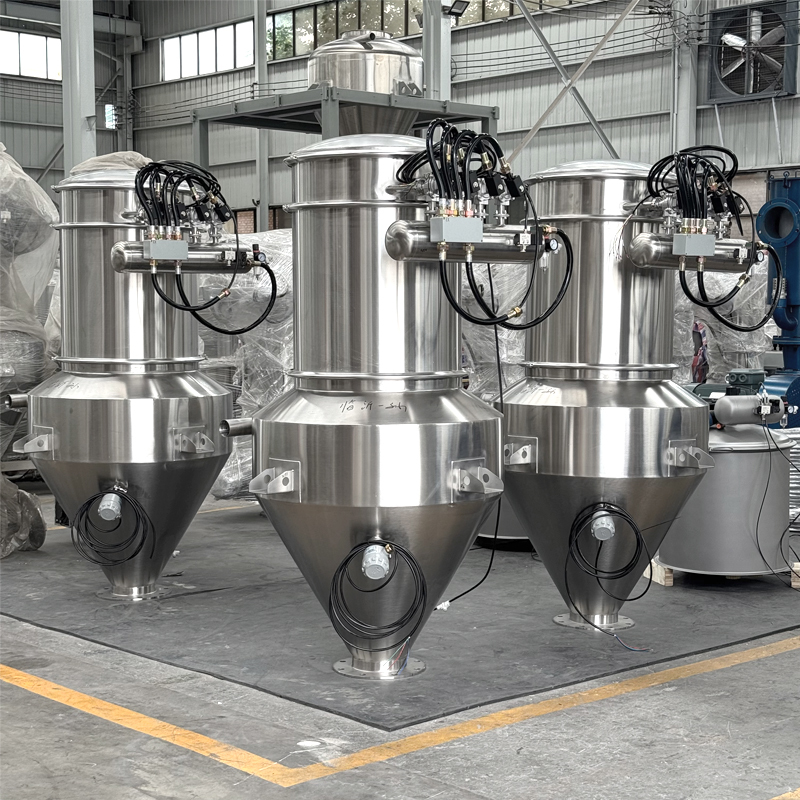

Product shows
Application
Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
