| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | Eds |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| BẢO TRÌ: | Thấp | Truyền đạt khoảng cách: | tùy chỉnh |
|---|---|---|---|
| Tính năng an toàn: | Hệ thống kiểm soát bụi | Tùy chọn tùy chỉnh: | Có sẵn |
| Lợi thế: | Mức độ tự động hóa cao | Kích thước: | tùy chỉnh |
| Hệ thống suy luận: | Đúng | Dịch vụ tùy chỉnh: | Ủng hộ |
| Ứng dụng: | Xử lý vật liệu khối, chế biến thực phẩm, chế biến hóa học | Vật liệu: | Thép không gỉ |
| Tính năng chính: | Mang theo bộ sưu tập bụi | Tính năng: | Không bụi |
| Điều khiển: | Plc | Cách sử dụng: | xả túi nhỏ |
Product description
The dust-free feeding station is a specialized equipment used in industrial production to ensure the clean feeding of materials. It is suitable for powders, particles and other dust-prone materials. Through negative pressure suction and sealed chambers, it can prevent dust from escaping during feeding, thereby protecting the workshop environment and the health of personnel.
It can be compatible with various types of material bags such as ton bags and small bags, and has the functions of breaking the hopper and screening materials. It is widely used in industries with high cleanliness requirements such as food, medicine, and chemical industries, helping to produce products that meet environmental protection and hygiene standards.
Working principle
The dust-free feeding station operates based on the core principle of "sealing isolation + negative pressure suction": The sealed chamber is precisely aligned with the feeding port to prevent dust from spilling out;At the same time, it can prevent the blockage of the feeding port by vibration to break the arch, and also integrate the synchronous screening and debris removal function of the screen, which can be adapted to various material bags and help achieve clean feeding of dust-prone materials.
Features & Benefits
1. Highly effective dust prevention: Through a dual design of sealed chamber and negative pressure suction, it prevents dust from leaking from the source, ensuring the cleanliness of the workshop and the health of personnel.
2. Strong adaptability: It can be connected to various types of material bags such as ton bags and small bags, and is compatible with powdery and granular materials prone to dust. It is suitable for multiple industry scenarios.
3. Diverse functions: It comes with a break-arch device to prevent blockage and can be optionally equipped with a screening component for simultaneous impurity removal, balancing smooth feeding and material purification.
4. Easy operation and maintenance: The structure is simple, the feeding connection is convenient, and the filter bags and other components are easy to disassemble and clean, suitable for continuous production needs.
5. High compliance: It meets the strict hygiene and environmental protection standards of industries such as food and medicine, helping production comply with relevant regulations.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
Detail display

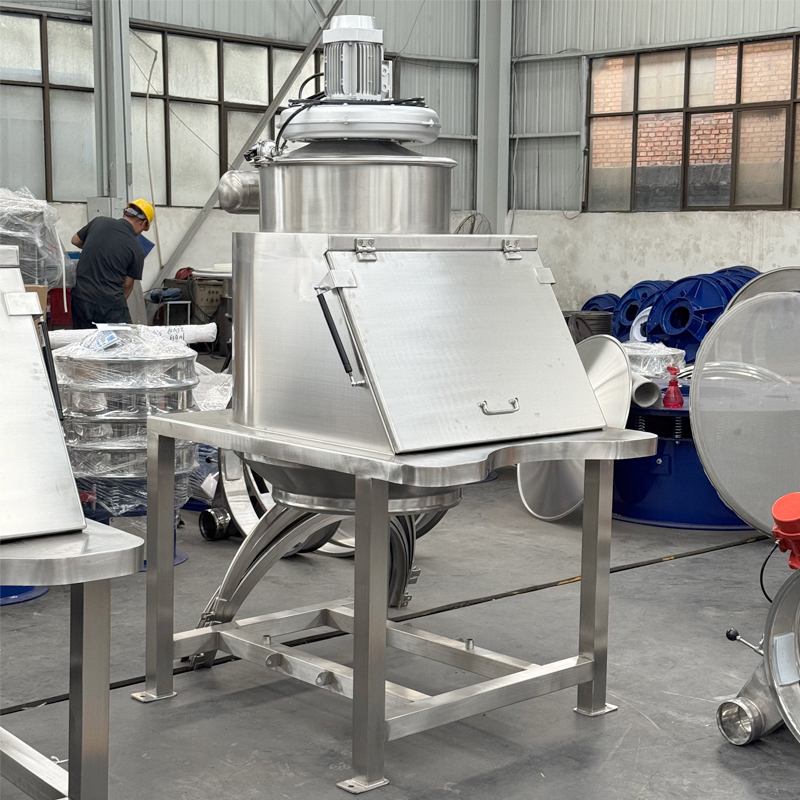

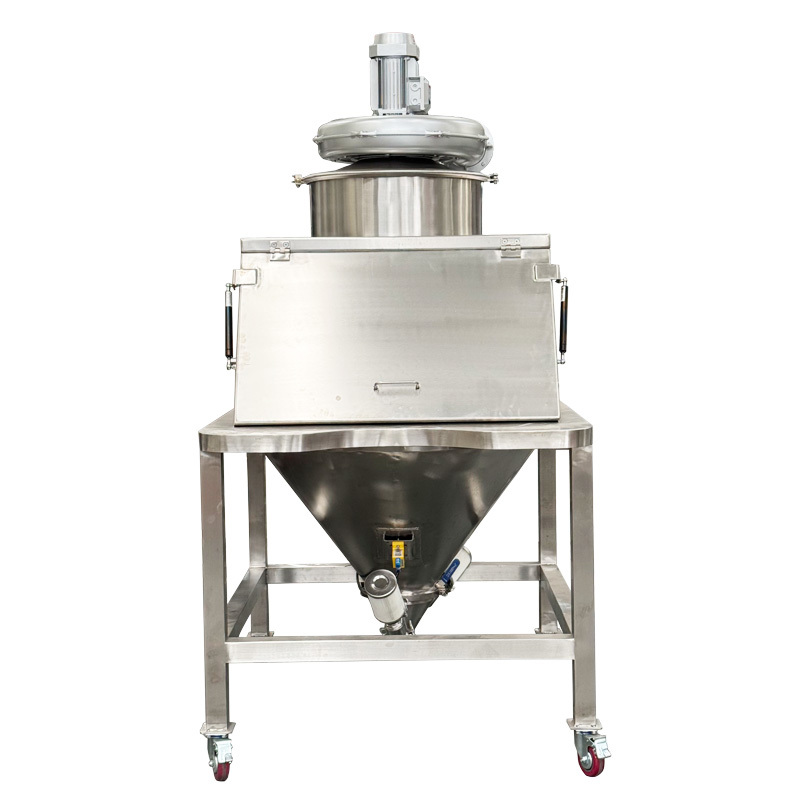

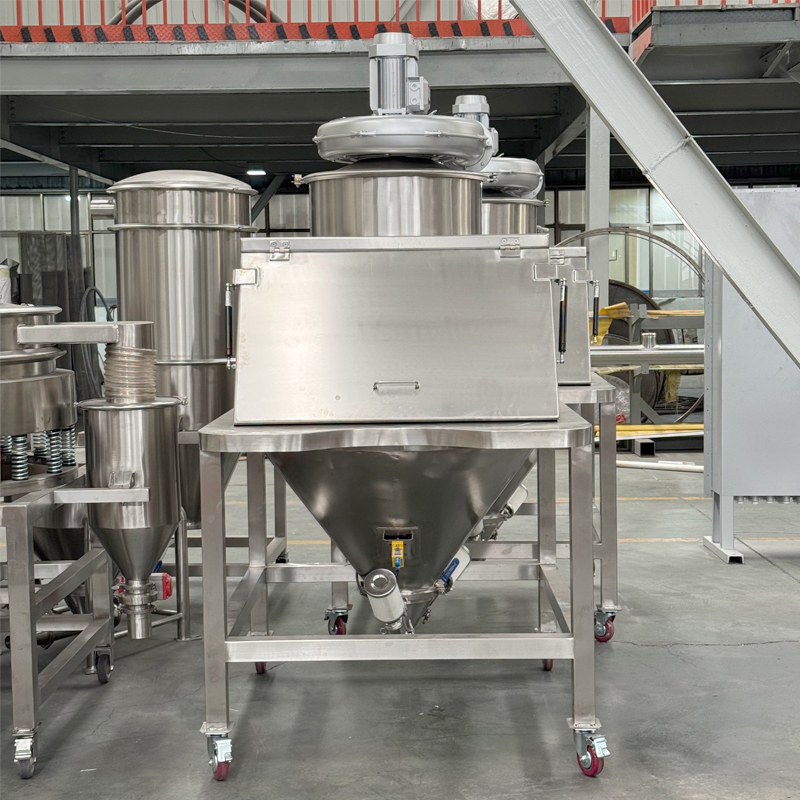

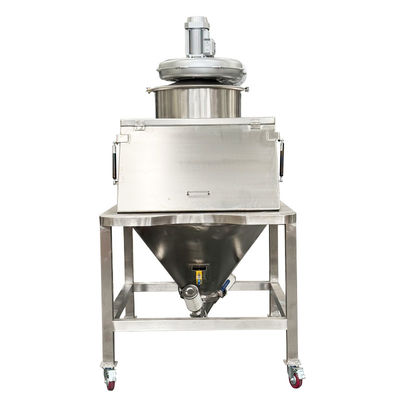

Product display
