| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | ZPS |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| Chức năng: | Sàng lọc\tách\sắp xếp\sàng lọc | Từ khóa: | Sàng công nghiệp |
|---|---|---|---|
| Từ khóa: | Màn hình rung | BẢO TRÌ: | Dễ dàng và chi phí thấp |
| Vật liệu: | Thép không gỉ | Phạm vi kích thước sàng lọc: | Từ 1mm đến 100mm |
| Bảo hành: | 1 năm | Kích thước lưới: | 2-500 lưới |
| Đường kính: | 400-2000mm | Đề nghị xem xét: | Vòng tròn, hình elip hoặc tuyến tính |
| Phương pháp cài đặt: | Đặt trên sàn hoặc treo | Các tính năng đặc biệt: | Hoạt động của bụi và thấp |
| Tùy chỉnh: | Ủng hộ | Hình dạng: | Tròn |
| Hiệu quả sàng lọc: | Lên đến 99% | Cách sử dụng: | sàng lọc tách biệt |
Product description

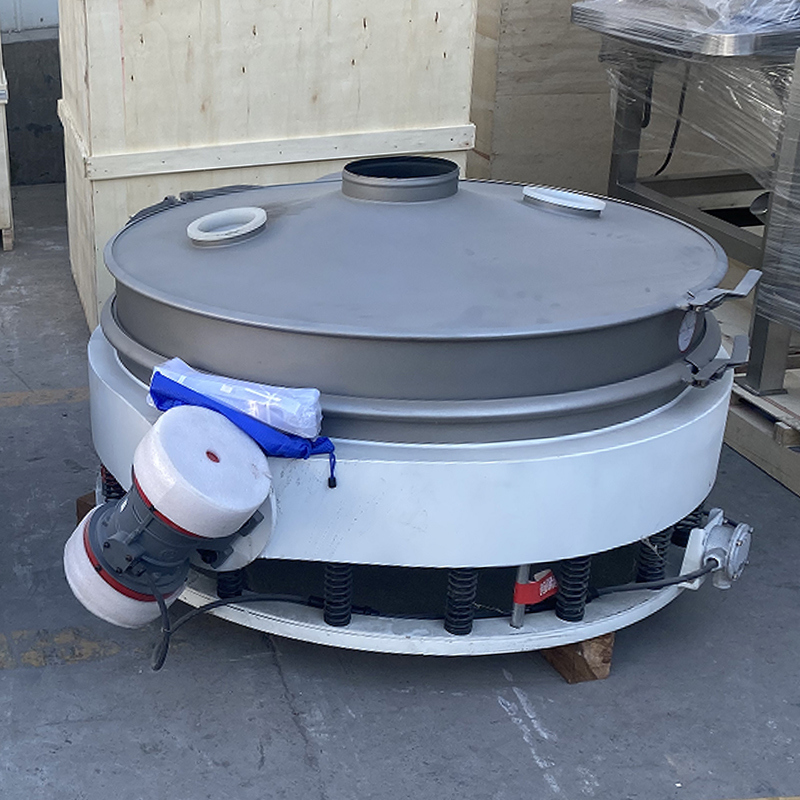

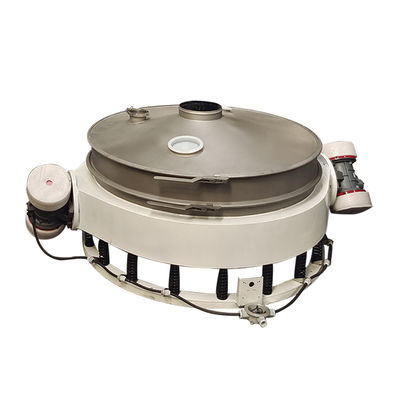

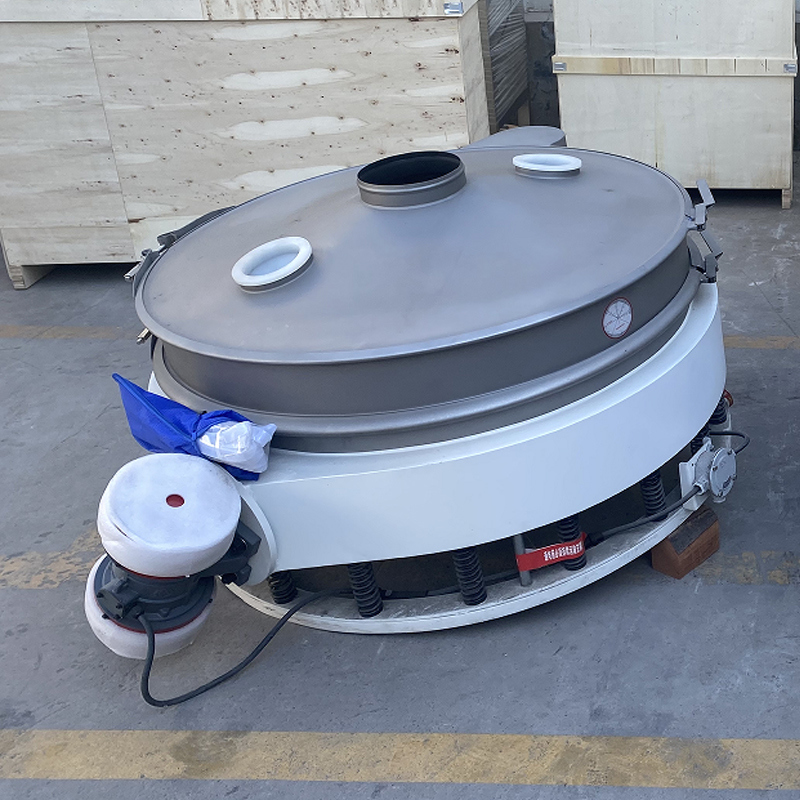

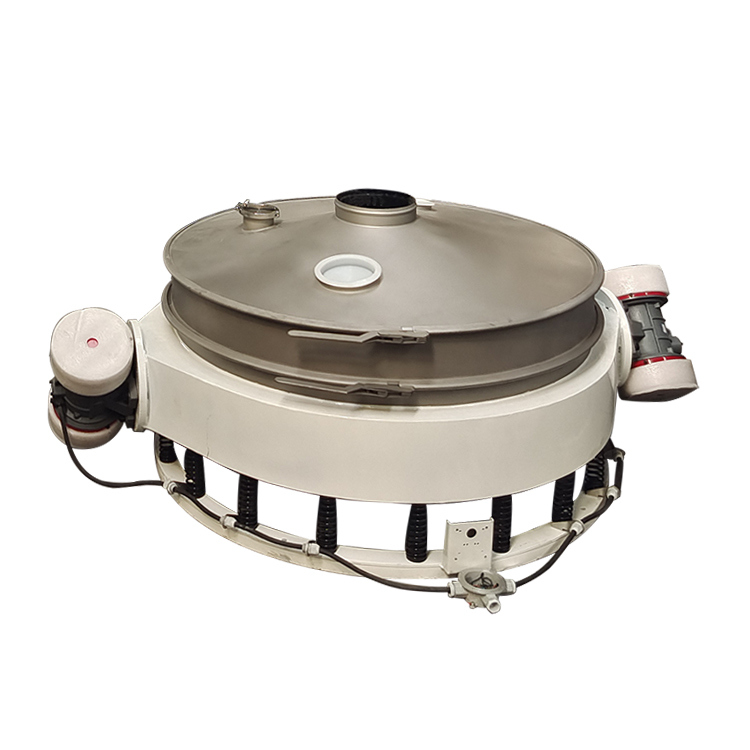

The straight-through screen is a commonly used lightweight screening equipment in industries such as chemical, food, and medicine. It is characterized by efficient screening and convenient operation.
It is suitable for medium and fine powder materials such as flour, plastic powder, and Chinese herbal powder. It can quickly complete impurity removal, classification, or semi-finished product screening without any material accumulation problems. The equipment is small in size, occupies less space, is easy to disassemble and clean, and can be flexibly integrated into the production line to meet the basic screening requirements for material cleanliness and particle size in industrial production.
Working principle
The circular dual-motor direct-flow screen is powered by two vibration motors. These two motors are installed symmetrically and operate in opposite directions simultaneously, generating a linear excitation force along the screen surface.
After entering from the top feed port, the materials move continuously in a straight line along the sieve surface under the action of the excitation force. The qualified fine materials with diameters smaller than the sieve mesh size pass through the sieve surface quickly and are discharged directly from the bottom outlet; the coarse materials with diameters larger than the mesh size continue to move forward along the sieve surface and are separated from the end coarse material outlet.
The overall design has no material retention area. With a reasonable screen angle, it achieves efficient screening. At the same time, the dual motors provide balanced vibration, ensuring more stable operation.
Product Features
1. Efficient screening: Dual motors operate simultaneously, ensuring no material accumulation. Fine particles are discharged directly while coarse particles are separated quickly.
2. Stable operation: Dual motors operate in opposite directions, resulting in uniform amplitude and low noise.
3. Wide applicability: Capable of processing various types of medium and fine powders, meeting the requirements for separation and classification.
4. Easy maintenance: Simple structure, replaceable screen, convenient for cleaning and maintenance.
5. Space-saving and flexible: Circular body is compact, easily integrable into production lines.
Product parameter
| Model | Power(kw) | Sieving diameter(mm) | Dimension(mm) |
| BZP-600 | 0.12 | 520 | 740*600*560 |
| BZP-800 | 0.18 | 720 | 1010*800*600 |
| BZP-1000 | 0.18 | 890 | 1200*970*640 |
| BZP-1200 | 0.25 | 1090 | 1430*1700*700 |
| BZP-1500 | 0.25 | 1390 | 1780*1470*760 |
| Machine can be customized based on your need | |||
