| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | DCS |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| Từ khóa: | Máy đóng gói tự động | Màu sắc: | Có thể tùy chỉnh |
|---|---|---|---|
| Giao diện hoạt động: | Màn hình cảm ứng | chất liệu túi: | Phim nhiều lớp, PE, PP |
| Kiểu: | Dấu ấn điền hình dọc (VFFS) | Chức năng: | Làm đầy, cân, niêm phong |
| Loại điều khiển: | Điện | Hệ thống điều khiển: | PLC và Màn hình cảm ứng |
| Phạm vi trọng lượng: | 5-50kg | Loại túi: | Túi dệt, túi giấy, túi nhựa |
| Tự động: | Tự động, bán tự động | Loại đóng gói: | Túi gối, túi Gusset, túi Quad Seal |
| Vật liệu: | Thép không gỉ |

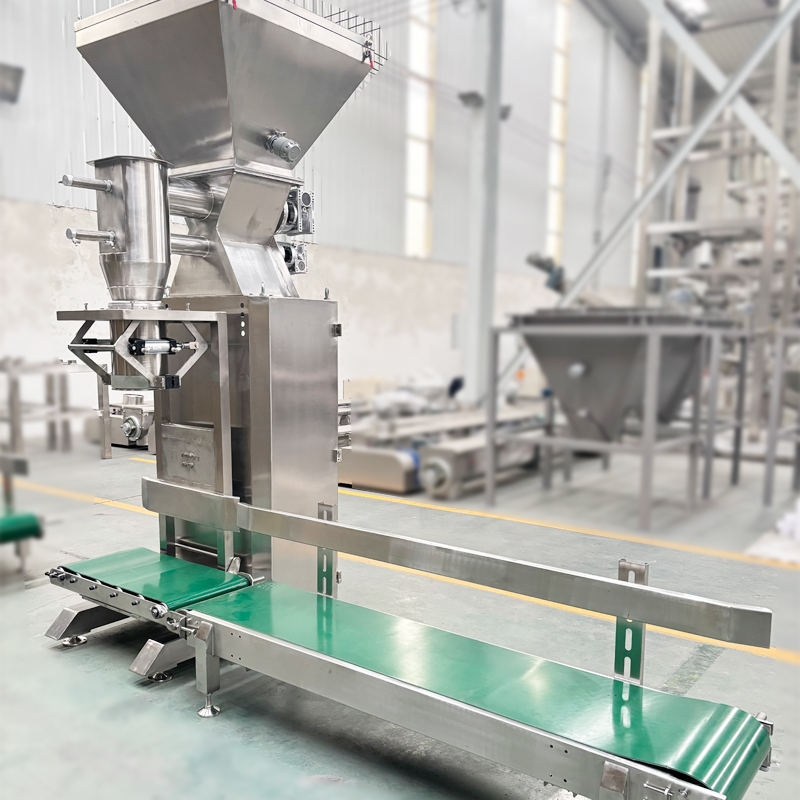

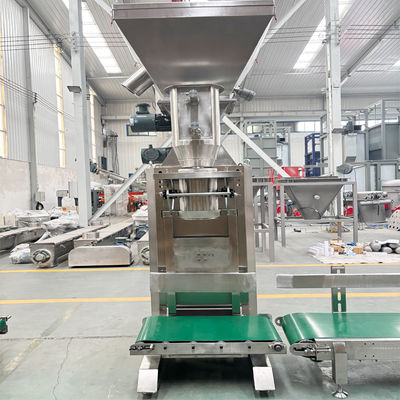

This series of packaging machines are specifically designed for bagging of 5-50kg granular and powder materials. It integrates automatic bagging, weighing, filling and sealing functions. The structure is sturdy and the operation is stable and efficient. The equipment is applicable to industries such as chemicals, feed, and grains, and can significantly improve the production efficiency and accuracy of large-bag packaging, effectively reduce labor intensity and material loss. It is an ideal choice for modern large-scale production.
This equipment typically employs a net weight-based weighing system. The working process is as follows: Firstly, the bag-feeding device picks up and opens the empty bag; then the material is fed into the weighing hopper by the feeding mechanism (such as a screw or gravity type) for precise weighing; when the target weight is reached, the weight-compliant materials are placed into the opened bag; finally, the bag-transporting device moves the bag to complete the sealing operations such as folding, sewing, or heat sealing, and outputs the finished bag.
1. High precision and high efficiency: Utilizing high-precision sensors and advanced control systems, ensuring accurate weighing; the automated process operates continuously, significantly increasing the packaging speed.
2. Robust and reliable: The body structure is sturdy, and key components are made of high-quality materials, capable of withstanding high-intensity continuous production, with low failure rate and long lifespan.
3. Flexible and adaptable: By replacing a few components, it can be quickly adjusted to accommodate different materials and packaging bags of different specifications.
4. User-friendly operation: Equipped with an intuitive touch screen human-machine interface, parameter settings and adjustments are simple; it has complete automatic diagnosis and alarm functions, making maintenance easy.
5. Environmentally friendly and clean: Adopting a sealed design, it effectively prevents dust from flying; it can be connected to dust removal equipment to maintain a clean working environment, meeting environmental protection requirements.
1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine
| Metering Mode | Auger filling, Loading cell |
| Package Weight | 5kg / 10kg / 15kg / 20kg / 25kg / 50kg or customized |
| Materials | SS304 / SS316L / Carbon steel |
| Package Accuracy | ±0.2-1%(according to the material) |
| Packaging Speed | 2-10bags/min(according to the material) |
| Power Supply | 220V,380V,480V or customized |
| Hopper Volume | 50L |
| Total Power | 5Kw |
| Overall Dimensions | 1000×900×2150mm or customized |
| Operational Style | PLC control system,Colorful touch screen |
