| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | ZKJ |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Khả năng cung cấp: | 5000 bộ/năm |
| Chức năng: | Truyền đạt vật liệu | Cách sử dụng: | Vận chuyển bột, hạt |
|---|---|---|---|
| Bảo hành: | 1 năm | Tốc độ: | có thể điều chỉnh |
| Khối lượng kho: | Có thể tùy chỉnh | Chế độ vận chuyển: | Truyền áp suất âm |
| Đặc trưng: | Không có bụi, tiếng ồn thấp, dễ làm sạch | Vật liệu: | thép không gỉ |
| Điều khiển: | PLC Control/Control Box | nguồn chân không: | Bơm chân không, quạt rễ cây |
| Loại sản phẩm: | Hệ thống băng tải | Cài đặt: | Cài đặt dễ dàng |
| Tốc độ băng tải: | có thể điều chỉnh | Cấp: | Tự động |
| Làm nổi bật: | vacuum conveyor systems with enclosed pipelines,continuous material transfer vacuum conveyors,clean safe conveying vacuum systems |
||
Product description

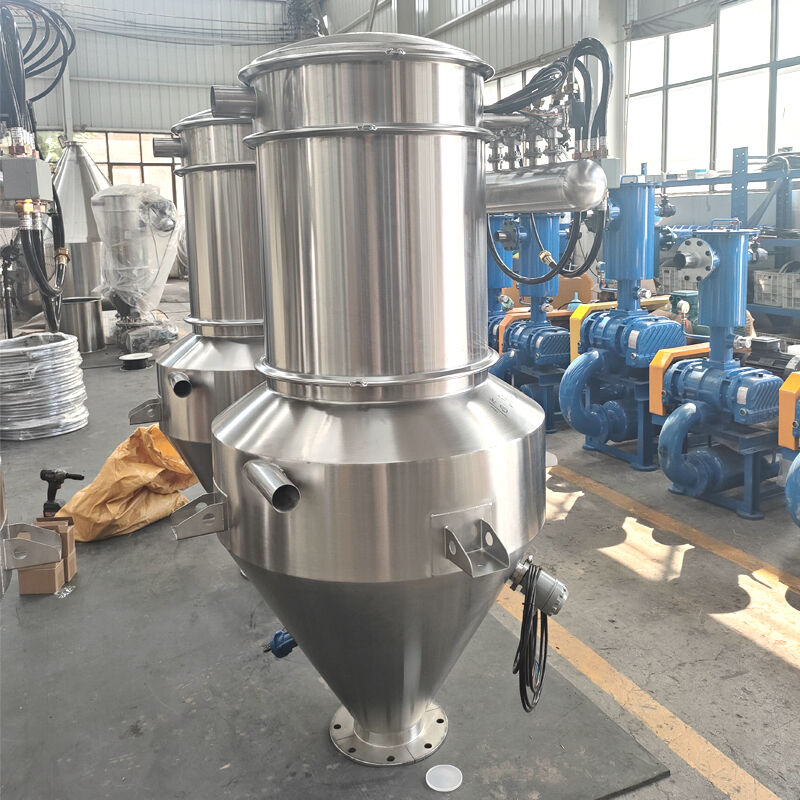

The continuous vacuum feeding machine is an industrial equipment that enables efficient and automated transportation of powder and granular materials within a closed pipeline. It utilizes a continuous negative pressure airflow, which allows for stable and rapid material extraction from the supply point and subsequent transportation to designated containers or process points without interrupting the system operation. This equipment has a compact structure and operates in a fully enclosed manner, effectively preventing dust from escaping and avoiding cross-contamination. It significantly enhances the cleanliness of the production environment and the efficiency of continuous operations, making it a crucial device for achieving automated material transfer in modern production lines.
Working principle
This equipment creates a stable negative pressure airflow in the pipeline through a vacuum pump, causing the material to be sucked into the separation container. Subsequently, the system automatically switches to a pressure relief state, and the material is discharged under the force of gravity. The two stages of material suction and discharge are alternately cycled through the automatic valve control system, thereby achieving continuous and sealed material transportation.
Product features
Features:
Full closed-pipe transportation: The materials run throughout in enclosed pipes and containers.
Continuous cyclic operation: The processes of suction, separation, discharging, and cleaning are automatically cycled and uninterrupted.
Automatic control: Utilizes PLC or intelligent control systems to achieve automated operation.
Modular design: Compact structure, easy to integrate into existing production lines.
Core advantages:
High-efficiency dust prevention: Prevent dust from spilling out, significantly improve working environment, and reduce material loss.
Quality assurance: Avoid moisture and contamination of materials, ensuring product consistency and purity.
Efficiency enhancement: Achieve automated continuous feeding, reduce manual intervention, and increase production efficiency.
Safety and reliability: Reduce the risk of dust explosion, stable equipment operation, and simple maintenance.
Flexible adaptation: Suitable for various powder and granular materials, and can be customized for different distances and working conditions.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |

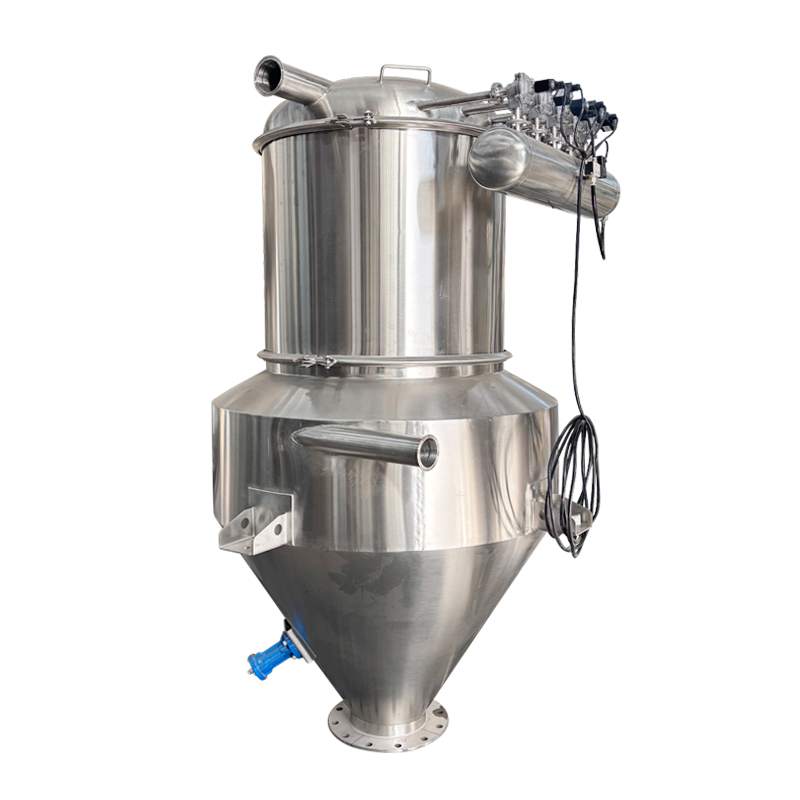

Product details
Production line diagram

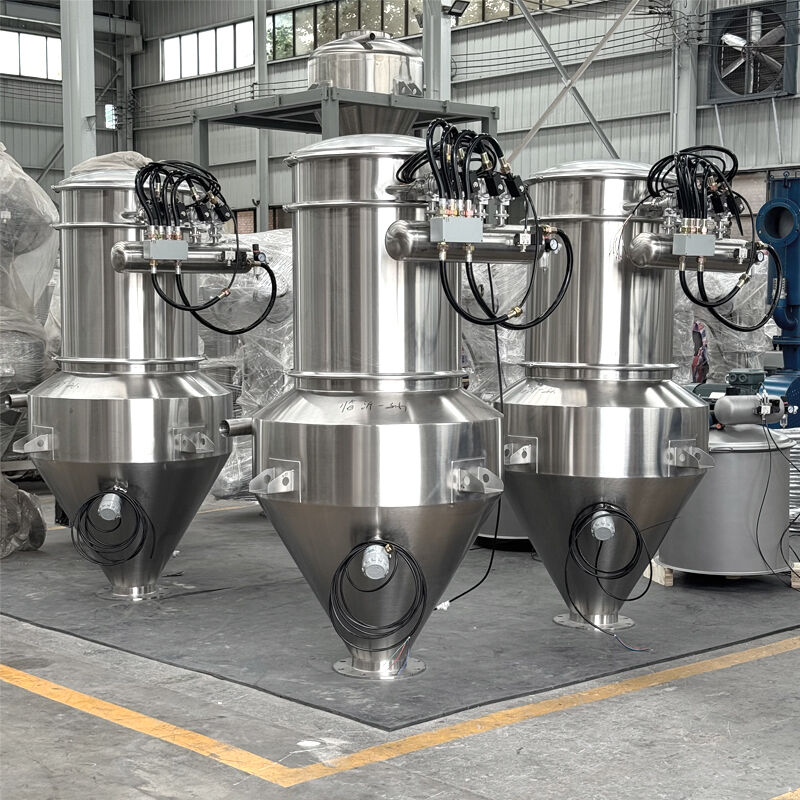

Product shows
Application
Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
