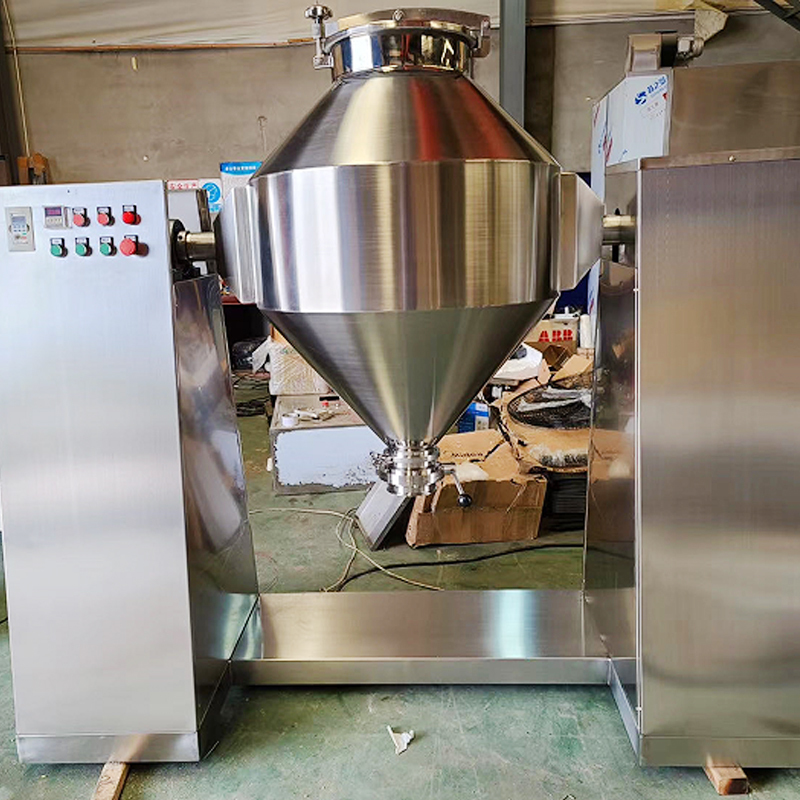

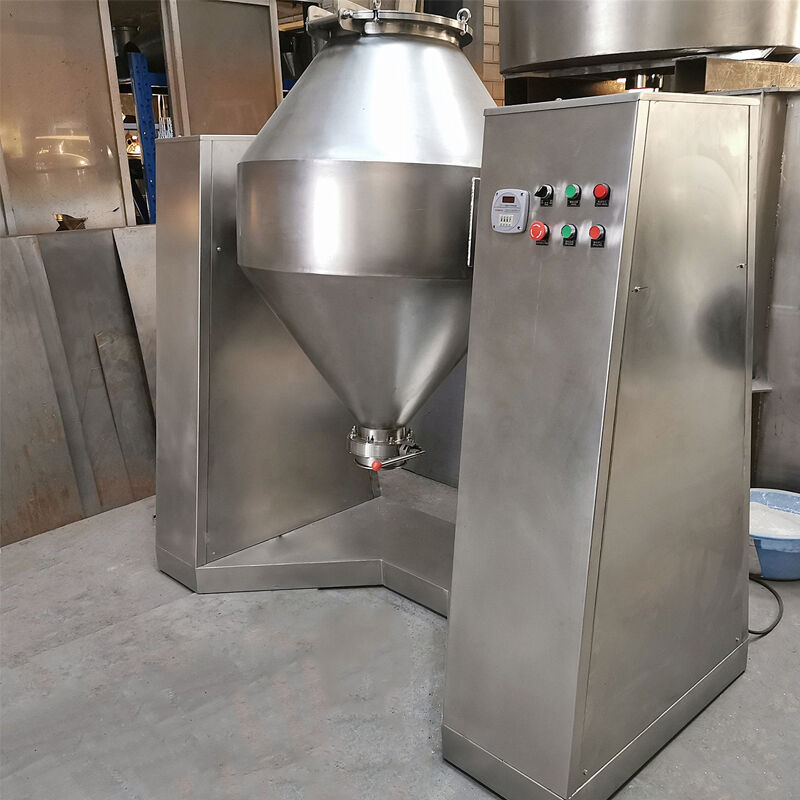

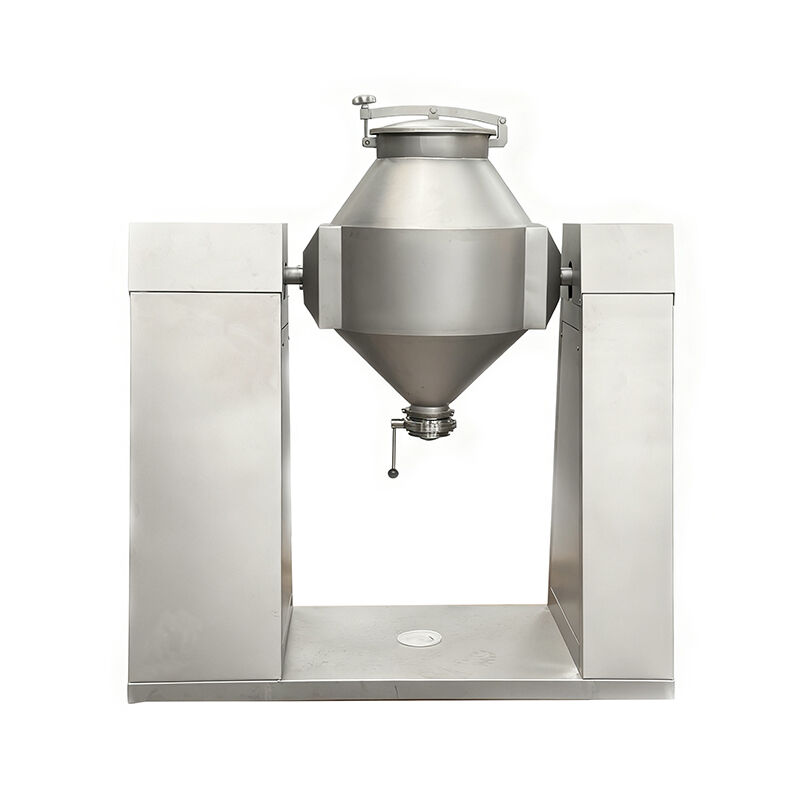

Double Cone Mixer

Product description

The double cone mixer is a highly efficient and reliable equipment for mixing powders and granules. Its main structure consists of two symmetrical conical cylinders. Generally, it achieves gentle and uniform mixing of materials through rotational motion. It is widely used in industries such as food and chemical, featuring high mixing uniformity, simple operation, easy cleaning, and gentle handling of materials without causing breakage. It is an ideal choice for intermittent batch mixing.

Working principle

The double-cone mixing container rotates uniformly around its horizontal axis. As the container rotates, the materials inside are lifted upwards along the inner wall of the container under the influence of gravity until they reach their natural resting angle. Subsequently, the materials slide down and spread out like a waterfall under the force of gravity. This process of lifting and sliding repeats and converges at both ends of the container as it rotates.
During this process, the different components of the materials are continuously lifted, diffused, folded and interwoven in the three-dimensional space, thereby achieving macroscopic uniform distribution and microscopic mutual penetration within a short period of time. Since the mixing process mainly relies on gravity, certain requirements are imposed on the physical properties of the materials, and it is a very gentle mixing method that can effectively avoid the heating, fragmentation or generation of static electricity of the materials.

Product characteristics

1. Uniform mixing: Achieve gentle and thorough mixing of the materials through three-dimensional flipping.
2. Gentle on materials: Gravity mixing, with low shear force, suitable for fragile or heat-sensitive materials.
3. Easy to operate and clean: The structure is simple with no dead corners, making it convenient for loading and unloading materials as well as thorough cleaning.
4. High efficiency and low consumption: Smooth operation, low energy consumption, and easy maintenance.
5. Functionally expandable: It can be easily integrated with drying, vacuum and other processes.

Application

1. Pharmaceutical industry: The raw materials and auxiliary materials used for mixing powders and granules are the core equipment for the production of solid preparations.1. Pharmaceutical industry: The raw materials and auxiliary materials used for mixing powders and granules are the core equipment for the production of solid preparations.
2. Food industry: It is used for mixing seasonings, additives, milk powder, coffee powder, spices, etc.
3. Chemical industry: It is used for mixing pigments, dyes, resin powders, catalysts and other chemical raw materials.
4. Other fields: It is also widely applied in industries such as pesticides, feed, metallurgical powders, and ceramic powder materials, where uniform mixing is required in the production process.

Product parameter

Production Line Diagram

1. Worker release the bag on the dust-free bag dumping station, as there is a dust collector in the machine, so dust fly
2. The sieve machine will remove the lump or big-size material, only allowing smaller size material to flow into the conveying system
3. The vacuum conveyor transports the material to a buffer hopper or a storage hopper, waiting for the mix
4. When you need to mix, the vacuum feeder starts work, transport the material from the hopper to the double cone mixer
5. After mix, the mixed material will be transported to a packing machine, packed according to the set weight, and then sealed the bag

In the system, the entire conveying process is sealed to ensure hygiene and safety.
