| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | QVC |
| Số lượng đặt hàng tối thiểu: | 1 BỘ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Khả năng cung cấp: | 5000 bộ/năm |
| Âm lượng: | 50L-5000L | Hệ thống điều khiển: | PLC |
|---|---|---|---|
| Từ khóa: | Máy trộn bột | Từ khóa: | Máy trộn |
| Vật liệu: | thép không gỉ | Chế độ xả: | Cửa lớn bằng khí nén hoặc van bướm |
| Bảo hành: | 1 năm | Cách sử dụng: | Trộn bột, hạt và chất lỏng |
| Kích thước: | tùy chỉnh | Phương pháp xả: | Hướng dẫn sử dụng/khí nén |
| Mẫu sản phẩm: | Tùy chỉnh | Chức năng: | Trộn nguyên liệu thô |
| nguồn điện: | Điện |
Product description
The helical ribbon mixer is a highly efficient and versatile industrial mixing device, mainly used in multiple fields such as chemical engineering, food, feed, and building materials. It is specifically designed for uniformly mixing powdery, granular, or materials with a certain viscosity. Its core advantages lie in its fast mixing speed and high efficiency, capable of completing the mixing of large quantities of materials in a short time. Additionally, the equipment features a compact structure, smooth operation, and low energy consumption.
Working principle
The working principle of the helical mixer is based on forced convection. The core of it lies in the fact that the stirring shaft is equipped with inner and outer double-layer helical blades with opposite directions: during operation, the outer helical blade pushes the material from both sides towards the center, while the inner helical blade pushes the material from the center towards both sides. This bidirectional movement forms a strong vortex and shear force within the cylinder, enabling the material to rapidly achieve uniform mixing through rolling and circulation.
Product features
Efficient and uniform
The mixing speed is fast and the uniformity is high. The efficiency is far superior to that of traditional mixing equipment.
Wide applicability
It can handle powders, particles, semi-fluids, high-viscosity materials, as well as solid-solid and solid-liquid mixtures; it can be optionally equipped with heating, cooling, and liquid spraying functions.
The discharge is rapid and there is little residue.
The discharge is fast. With the design of a large opening or a flush valve, combined with the screw belt for propulsion, the residue is extremely low.
Stable operation, low energy consumption
The mixing process is gentle, causing minimal damage to the materials; the structure is compact, with relatively low power requirements, ensuring smooth and reliable operation.
Easy to clean, convenient for maintenance
The interior is smooth without any dead corners. The bearings are placed externally to prevent contamination, making cleaning and maintenance easy.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Product details

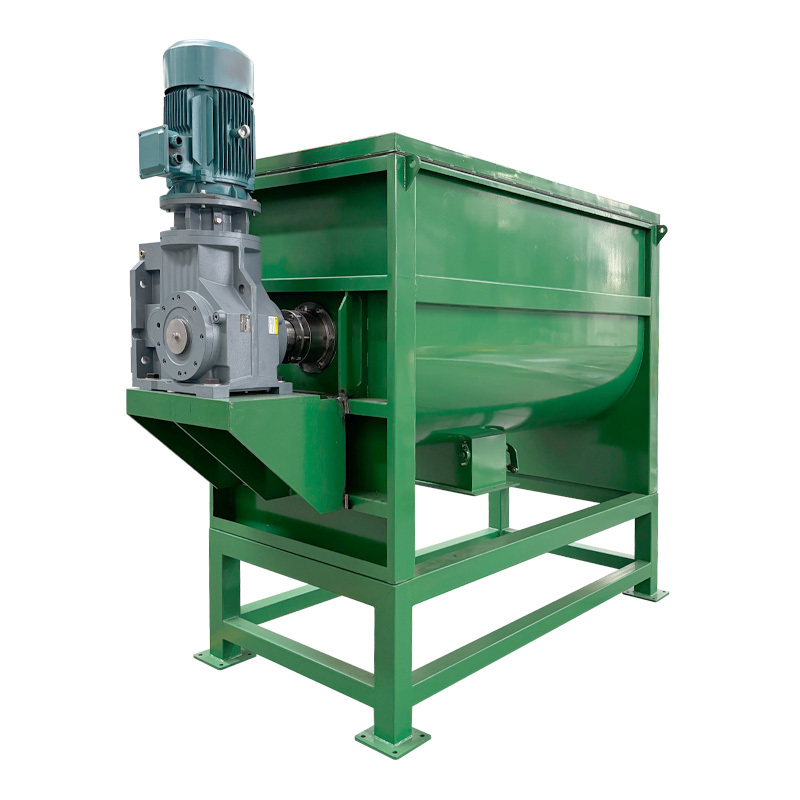

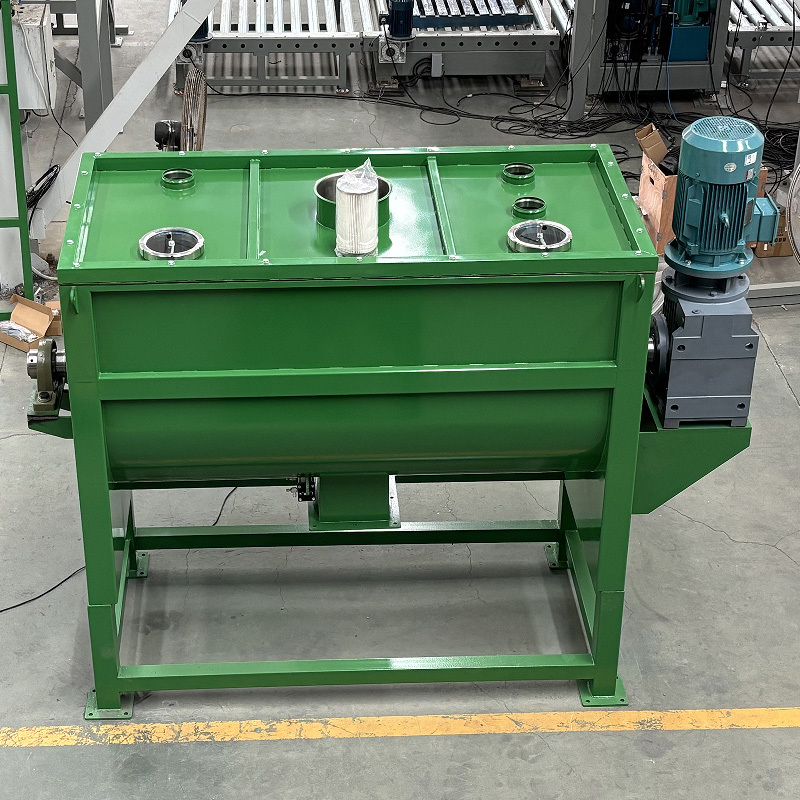

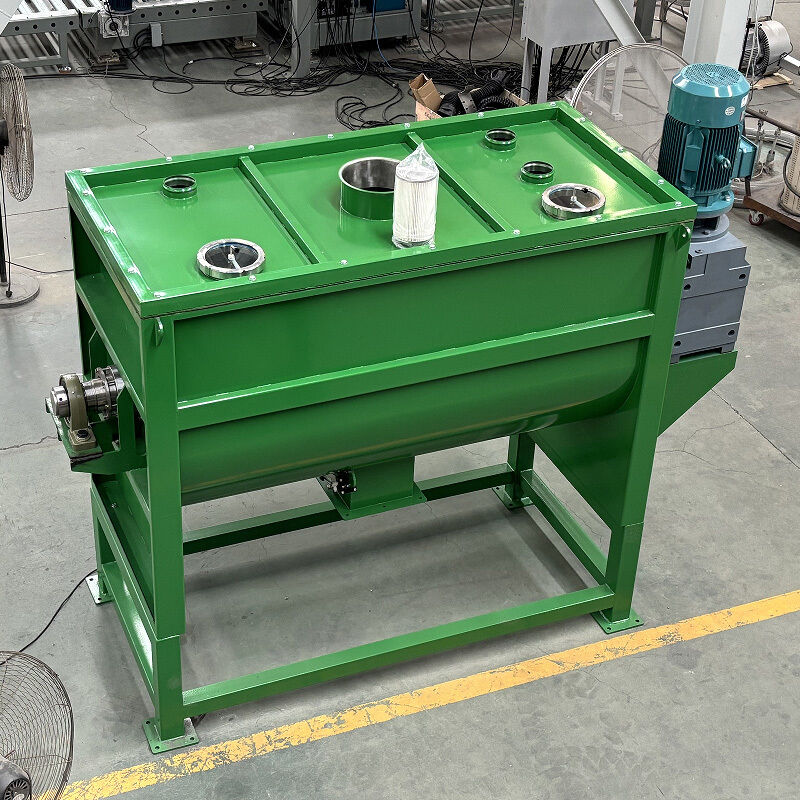

Product shows
Product application
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
