| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | VBD |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Khả năng cung cấp: | 5000 bộ / năm |
| Phương pháp trộn: | Vít hình nón | Vật liệu: | Thép không gỉ |
|---|---|---|---|
| sức mạnh trộn: | 1-50KW | Loại: | thiết bị trộn công nghiệp |
| Ứng dụng: | Công nghiệp thực phẩm, hóa chất, dược phẩm | phương pháp xả: | Van khí nén |
| Kiểm soát nhiệt độ: | máy điều nhiệt | Các tính năng an toàn: | Nút dừng khẩn cấp |
| Hệ thống điều khiển: | PLC | ||
| Làm nổi bật: | Stainless Steel Conical Mixer,Double Helix Conical Mixer,Dry Powder Conical Mixer |
||
Product Description
The conical mixer is a commonly used mixing equipment in industries such as chemical engineering, food, and medicine. Its main body is in a conical structure, and it usually has a spiral stirring component inside. During operation, the materials are lifted from the bottom of the cone to the top through the rotation of the spiral and continuously circulate, enabling different materials to be uniformly mixed in a relatively short time. It features high mixing efficiency, low energy consumption, and convenient unloading. It can meet the mixing requirements of various powder and granular materials.
Working Principle
Through the high-speed rotation of a single or double screw, the material at the bottom of the cone is lifted upward along the outer wall of the screw to the top of the cone by the thrust of the screw ribbon. After reaching the top, the material is scattered in all directions due to the action of centrifugal force and gravity, forming a vertical circulation movement of "spilling at the top of the cone". Meanwhile, when the spiral rotates, it generates radial thrust within the cone, causing the material to diffuse from the center to the cylinder wall. Meanwhile, the material spilled from the top of the cone will fill the space at the bottom of the cone, forming a unidirectional cycle of "lifting - scattering - radial flow", thus achieving the mixing of powder or granular materials.
Product features
- High-efficiency mixing structure: The 80°-90° V-shaped cavity design causes strong convection and diffusion of materials during rotation, with uniformity exceeding 99% and low residue.
- Low energy consumption and stable operation: The central shaft support structure reduces the influence of centrifugal force, has low energy consumption and can operate continuously.
- Broad-spectrum material adaptability: Suitable for powder/granular materials, especially good at mixing materials with large density differences, prone to stratification or caking, and can be equipped with a flying knife device for crushing caking.
- Flexible function expansion: Some models support inert gas protection to meet the requirements of flammable, explosive or oxidation-sensitive materials;
- Convenient maintenance and cleaning: The stainless steel cavity is polished with no dead corners and meets GMP standards. It is easy to disassemble and maintain, making it suitable for high hygiene requirements in scenarios such as pharmaceuticals and food.
Product Parameters
| Model | VBDS-180 | VBDS-300 | VBDS-500 | VBDS-1000 | VBDS-2000 | VBDS-3000 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 |
| Capacity (kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 |
| Total volume(m³) | 0.18 | 0.3 | 0.5 | 1 | 2 | 3 |
| Mixing time(min) | 4~8 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
| Speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 |
Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.
Details Lmages

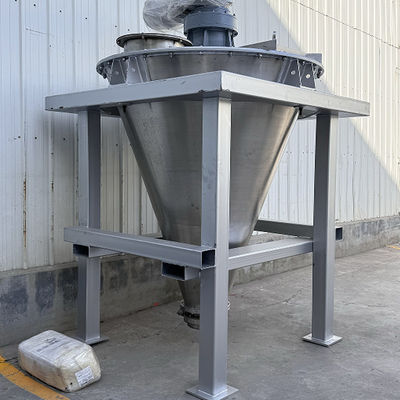

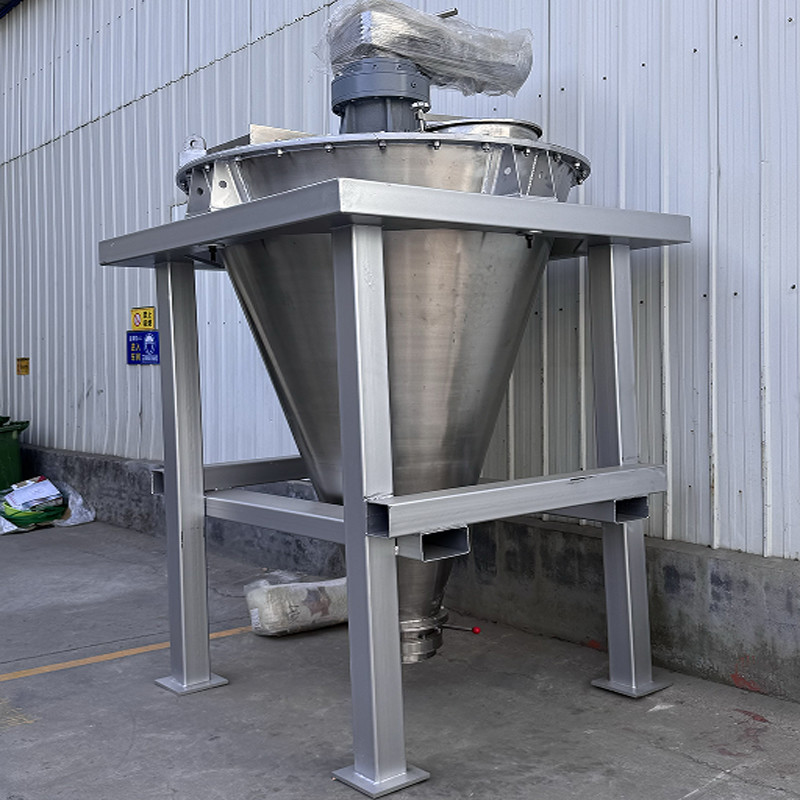

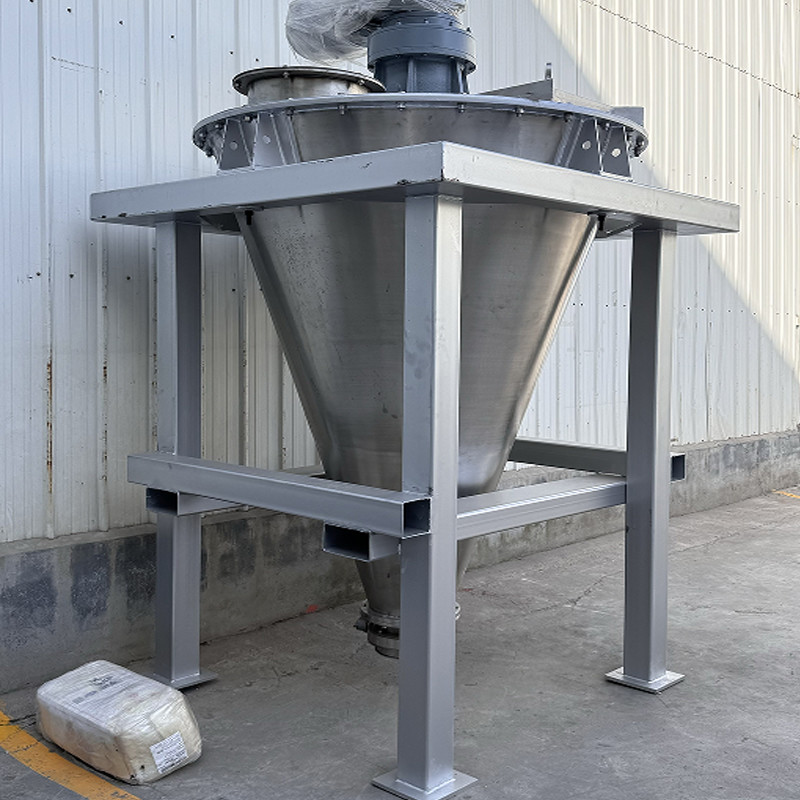

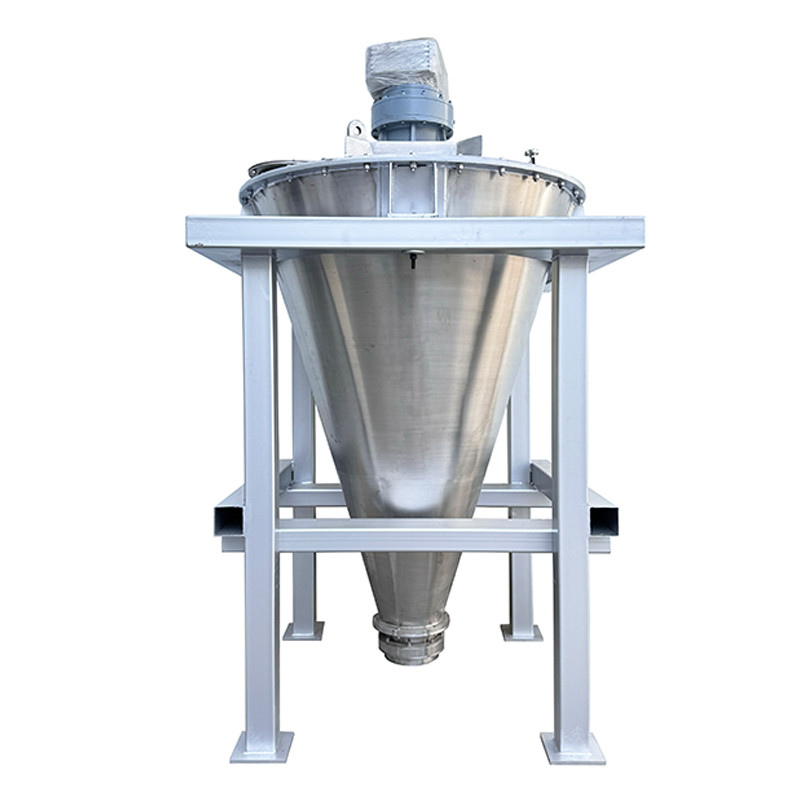

Product Shows
