| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Model Number: | VBDS |
| Minimum Order Quantity: | 1set |
| Giá bán: | có thể đàm phán |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Supply Ability: | 5000set/year |
| Features: | Gentle Mixing, No Dead Zones, Easy to Clean | Mixing Method: | Conical |
|---|---|---|---|
| Material: | Stainless Steel | Mixing Power: | 1-50 kW |
| Type: | Industrial Mixing Equipment | Application: | Food, Chemical, Pharmaceutical Industries |
| Discharge Method: | Pneumatic Valve | Temperature Control: | Thermostat |
| Safety Features: | Emergency Stop Button | Control System: | PLC |
| Warranty: | 1 year | Certifications: | CE, ISO, GMP |
| Weight: | Varies depending on model |
Product Description

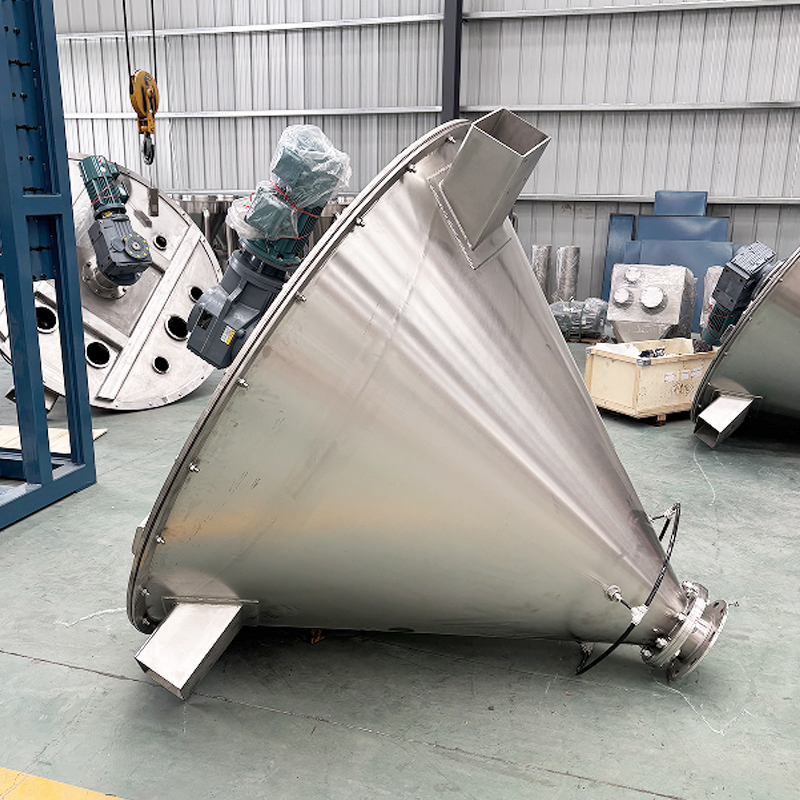

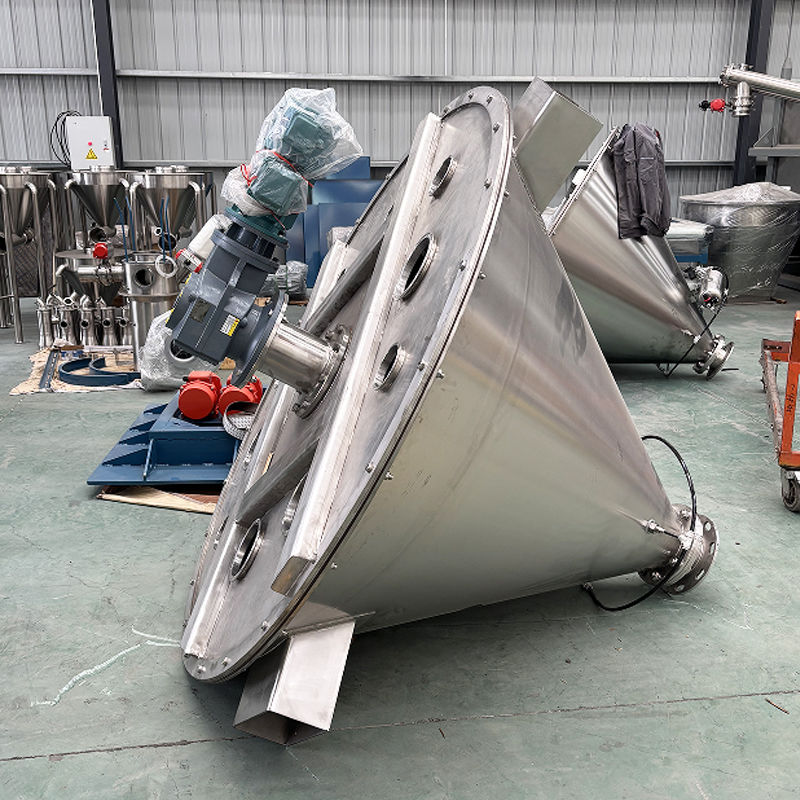

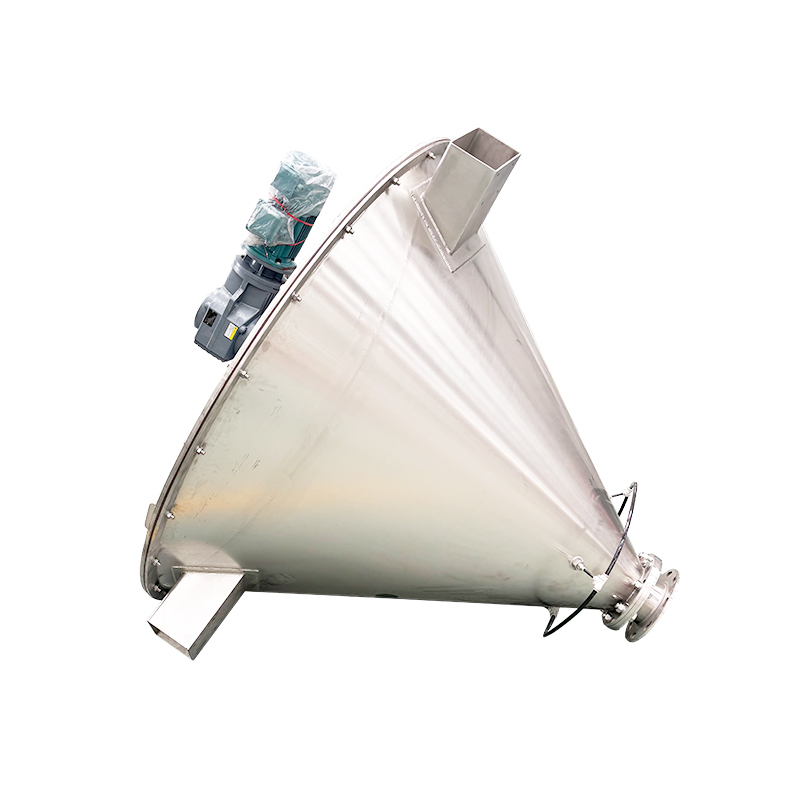

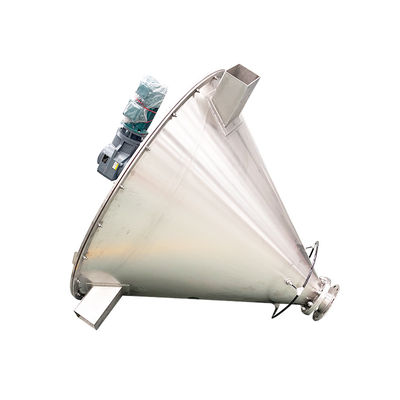

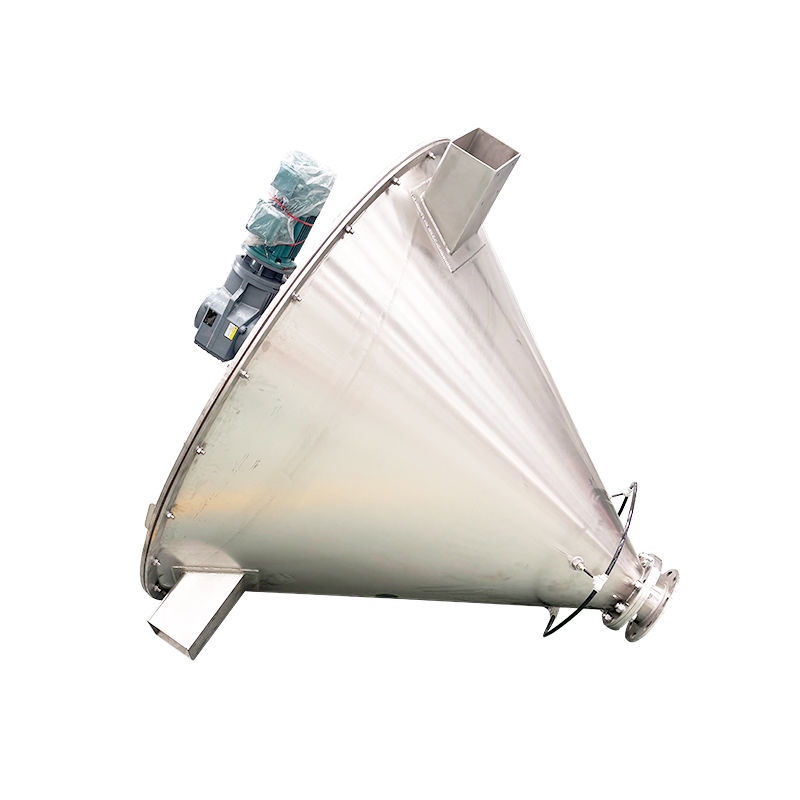

The conical mixer is a highly efficient mixing equipment with a conical cylinder as its core structure, widely used for uniform mixing of powder and granular materials. It features high mixing efficiency, strong material adaptability (able to handle materials prone to agglomeration or with small density differences), low residue, compact structure, and easy operation. It is commonly applied in industries such as chemical engineering, pharmaceuticals, food, and building materials, and is particularly suitable for small and medium batch mixing operations.
Working Principle
The working principle of the conical mixer is that the stirring paddles rotating inside the cylinder lift the materials from the bottom of the cone upwards. At the same time, by taking advantage of the inclination angle of the cone and the gravity of the materials, the materials spread outwards and slide down along the cylinder wall during the upward movement, forming a circulating convection motion. During this process, the materials are constantly subjected to shearing, flipping by the paddles and mutual collisions among different material particles. Eventually, through repeated shearing, convection and diffusion, the materials of different components are evenly mixed. This design not only utilizes the active pushing force of mechanical power but also completes the circulation with the help of the materials' own gravity, enabling the materials to achieve a high degree of uniform mixing in a relatively short time.
Product features
Good mixing effect: It can achieve uniform mixing of materials to a high degree, suitable for powder and granular materials with small density differences and prone to agglomeration.
Strong adaptability: It can handle dry powders and particles, and when combined with accessories, it can mix paste-like materials containing a small amount of liquid.
Low residue: The conical cylinder and reasonable blade structure reduce material residue, are easy to clean, and meet high hygiene requirements.
High efficiency: It can complete mixing in a short time and effectively improve production efficiency.
Compact structure: Simple design, small floor space, easy installation and maintenance.
Easy operation: Supports automatic control, simple process, easy to operate, can reduce labor intensity.
Stable operation: Low vibration, low noise during operation, reliable, and has a long service life.
Product Parameters
| Model | VBDS-180 | VBDS-300 | VBDS-500 | VBDS-1000 | VBDS-2000 | VBDS-3000 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 |
| Capacity (kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 |
| Total volume(m³) | 0.18 | 0.3 | 0.5 | 1 | 2 | 3 |
| Mixing time(min) | 4~8 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
| Speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 |
Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.
