Industrial Auger Screw Conveyor with 8m Height & 60° Angle

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: EVERSUN
Chứng nhận: ISO,CE
Số mô hình: Eds
Số lượng đặt hàng tối thiểu: 1SET
Giá bán: có thể đàm phán
chi tiết đóng gói: Các trường hợp gỗ xuất khẩu tiêu chuẩn
Thời gian giao hàng: Trong vòng 7-15 ngày làm việc
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Moneygram, Western Union
Khả năng cung cấp: 5000set/năm
Thông tin chi tiết
Động cơ: Động cơ lõi đồng chiều cao vận chuyển: 8m hoặc Tùy chỉnh
Cân nặng: Tùy chỉnh Góc điều chỉnh: ≤60 độ hoặc 90 độ
Cài đặt: Cài đặt đơn giản và nhanh chóng Chức năng chính: Vận chuyển thang máy
chiều cao xả: Tùy chỉnh Vật liệu cơ thể: Thép carbon,Thép không gỉ316L/304
Loại máng: U máng hoặc hình ống
Làm nổi bật:

Industrial auger screw conveyor 8m height

,

Auger screw conveyor 60° angle

,

Industrial screw conveyor with warranty


Mô tả sản phẩm

Screw Conveyor

Product description
Screw conveyors are equipment that continuously convey materials in a closed or open trough by means of the rotation of screw blades driven by a motor. They are classified into horizontal, inclined and vertical types according to their structure and can convey granular, powdered and small block materials. They are widely used in fields such as grain, mining and building materials. They have a simple structure, occupy a small area and have good sealing performance. However, they are not suitable for materials that are prone to adhesion or large and hard blocks to avoid blade jamming.

Working principle
The core working principle of the screw conveyor is as follows: The motor drives the screw shaft to rotate. The blades utilize the axial thrust generated by the helical angle to continuously push the materials in the material trough towards the discharge port, thereby achieving the continuous transportation of materials from the feed end to the discharge end. Its essence is to convert the rotational motion of the spiral blades into the linear motion of the material along the axis of the material trough. During this process, the material remains relatively stationary due to its own gravity and the friction of the material trough, and is only pushed forward by the blades.

Product characteristics
1. Simple structure: mainly composed of spiral blades, material troughs and drive motors. It has few components, is easy to install and maintain, and occupies a small area, saving space.
2. Good sealing performance: mostly adopts a closed material trough design, which can effectively prevent dust from flying or leakage, especially suitable for transporting materials with a lot of dust and unpleasant odors.
3. Stable conveying: can achieve continuous conveying in horizontal, inclined or even vertical directions. The material flow is easy to control, and is suitable for the automation connection of production lines.


Product parameter

Model Conveying tube diameter Power Hopper volume Angle(Degree)
ESC-133 133mm 0.75-4KW 200L or customized 30-60
ESC-159 159mm 0.75-4KW
ESC-219 219mm 1.5-4KW
ESC-273 273mm 2.2-4KW
Please consult us for more models













 Production line diagram

1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

Industrial Auger Screw Conveyor with 8m Height & 60° Angle 0

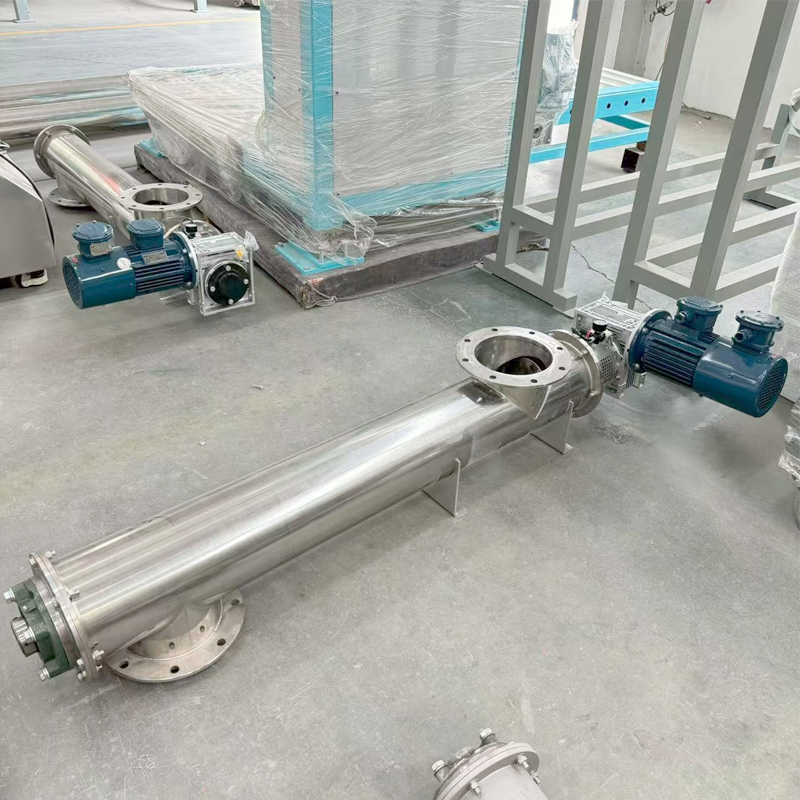

Product display
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 1

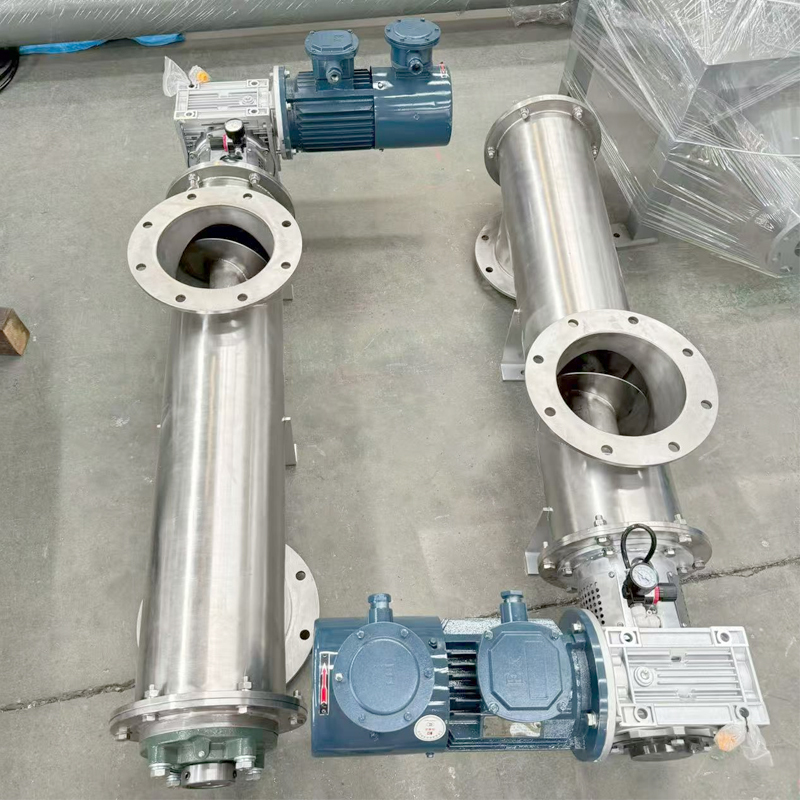

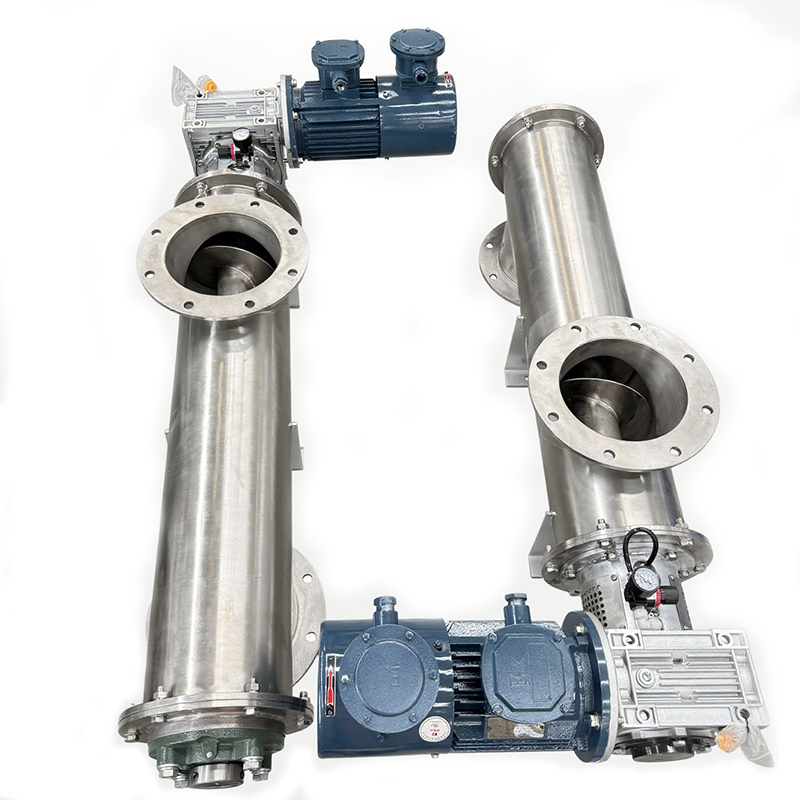

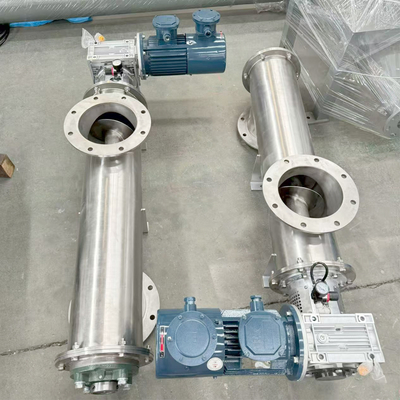

Product details
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 2
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 3

Product application
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 4

Packaging & Shipping
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 5

Why Choose us
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 6
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 7
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 8
Industrial Auger Screw Conveyor with 8m Height & 60° Angle 9
About us




We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
