| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | QVC |
| Số lượng đặt hàng tối thiểu: | 1SET |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| Âm lượng: | 50L-5000L | Hệ thống điều khiển: | Plc |
|---|---|---|---|
| Từ khóa: | máy trộn bột | Loại máy: | Trộn ruy băng |
| Từ khóa: | máy trộn | Vật liệu: | Thép không gỉ |
| CHẾ ĐỘ XẢ: | Cửa lớn bằng khí nén hoặc van bướm | Bảo hành: | 1 năm |
| Cách sử dụng: | Trộn bột, hạt và chất lỏng | kích thước: | Tùy chỉnh |
| Các ngành phù hợp: | Thực phẩm, Dược phẩm, Hóa chất, Mỹ phẩm và các ngành công nghiệp khác |
Product description
The helical ribbon mixer is a highly efficient and versatile equipment for mixing powders and granules. With its unique structural design, it ensures high uniformity of mixing and has no dead corners for residue, guaranteeing stable mixing results from batch to batch. This model is easy to operate and maintain, and can be fully enclosed for operation. It is widely used in industries such as chemical engineering, food, pharmaceuticals, and new energy, and is an ideal industrial equipment for large-scale and high-precision mixing production.
Working principle
The working principle of the helical mixer is based on its unique dual helical stirring structure. During operation, the outer helical belt pushes the material from both ends towards the center, while the inner helical belt moves from the center to both ends, creating a strong bidirectional convection circulation. The material simultaneously undergoes cross-mixing and shearing in both radial and axial directions, achieving rapid and uniform mixing in a short period of time, with no dead corners.
Product features
1. Uniform mixing: The bidirectional spiral blades generate three-dimensional convection, ensuring high mixing accuracy.
2. No dead corners: The unique structure ensures that the materials fully participate in the mixing process, with no residues.
3. Wide applicability: It can effectively handle both powder and paste, with strong versatility.
4. Stable and efficient: The structure is sturdy, energy consumption is low, and it is suitable for continuous large-scale production.
5. Integrated functions: It can be equipped with a jacket for heating and cooling to achieve processes such as drying and reactions.
6. Easy to clean: The inner surface is smooth, the opening rate is high, and it meets hygiene standards.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Product details

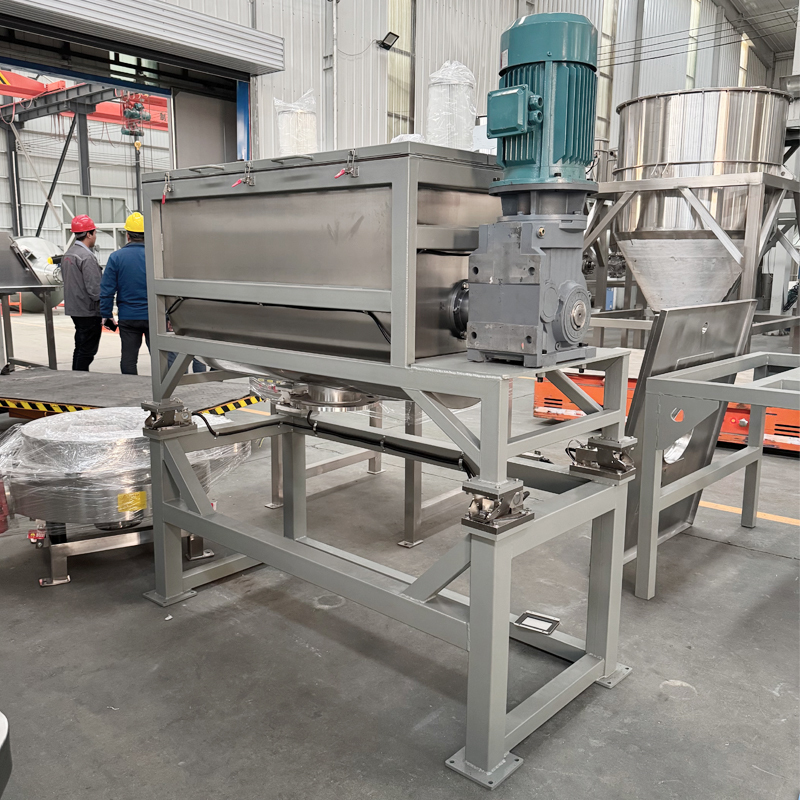

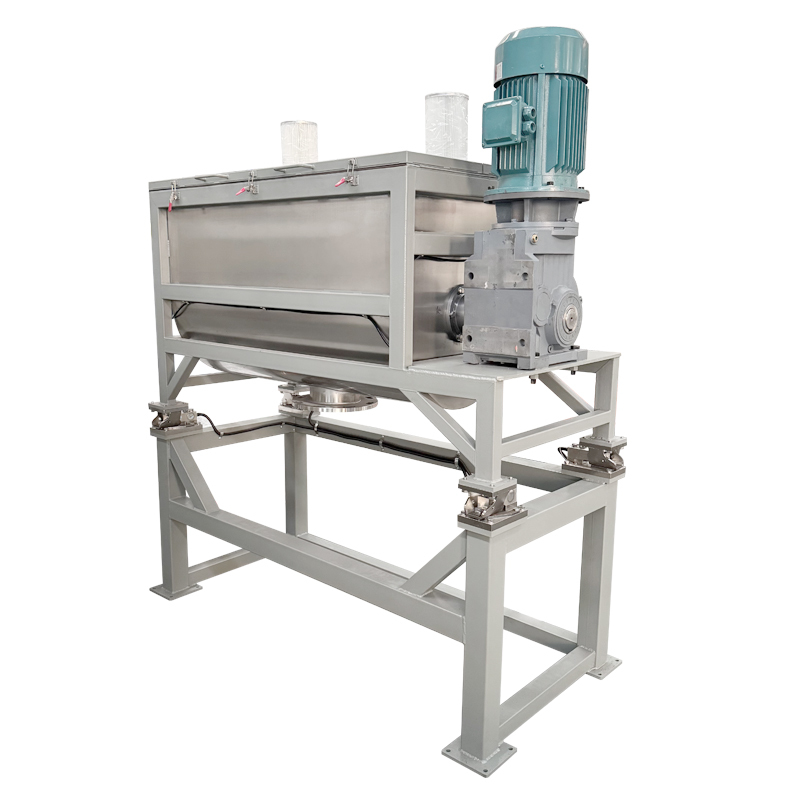

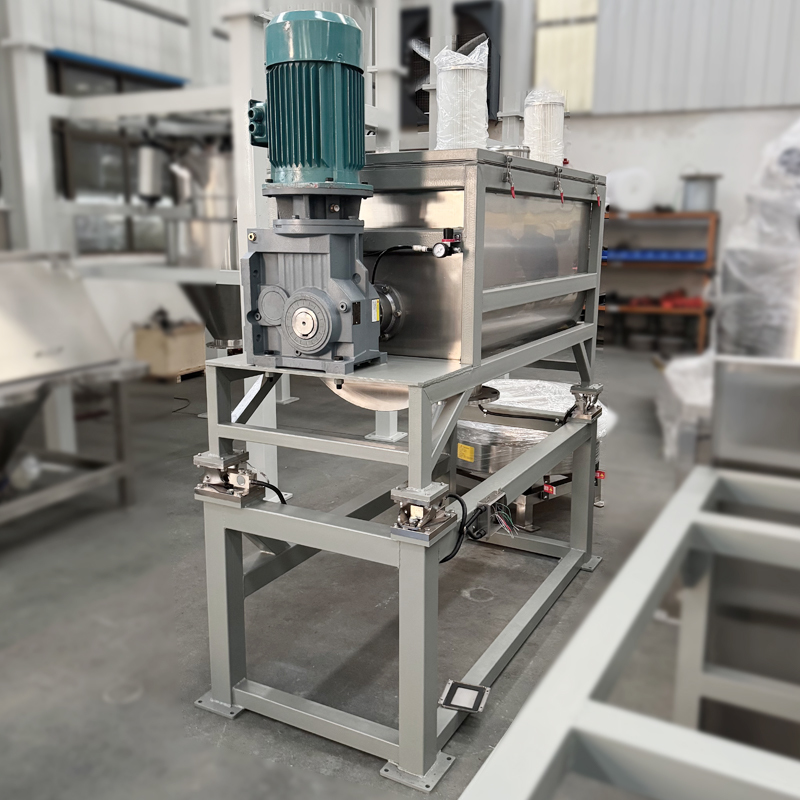

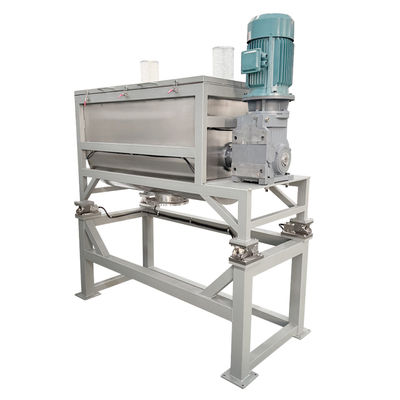

Product shows
Product application
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
