| Nguồn gốc: | TRUNG QUỐC |
|---|---|
| Hàng hiệu: | EVERSUN |
| Chứng nhận: | ISO,CE |
| Số mô hình: | EHXS |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Các trường hợp gỗ xuất khẩu tiêu chuẩn |
| Thời gian giao hàng: | Trong vòng 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Khả năng cung cấp: | 5000set/năm |
| Ứng dụng: | Thực phẩm, hóa chất, dược phẩm, khai thác, luyện kim, v.v. | Thuận lợi: | Độ chính xác cao và sản lượng lớn |
|---|---|---|---|
| loại sản phẩm: | Tự động | Lưới màn hình: | 2 ~ 500 lưới |
| Hệ thống làm sạch: | bóng nảy | Vật liệu cấu trúc: | Thép không gỉ304/316L, thép cacbon |
| Đường chuyển động vật chất: | Loại xoay | Kết cấu: | Niêm phong đầy đủ |
| Cách sử dụng: | sử dụng công nghiệp | Kích thước màn hình: | 12 mm đến 40 micron |
| Chức năng: | Sàng lọc\tách\sắp xếp\sàng lọc | Vật liệu màn hình: | Lưới dệt/tấm đục lỗ |
Product description

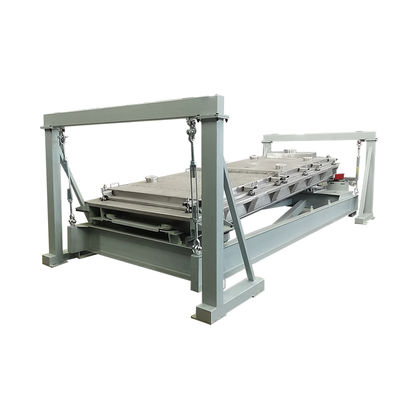

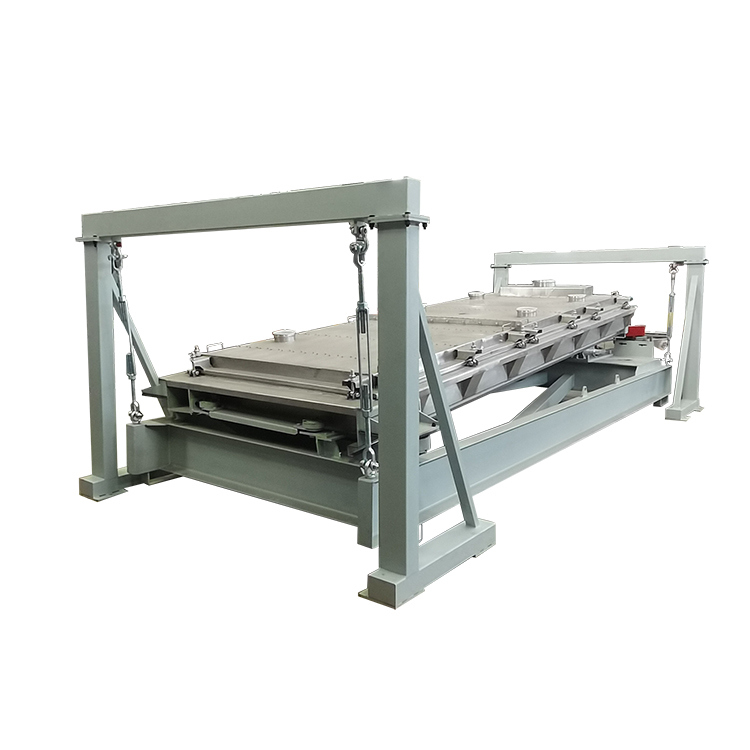

The planar cyclone separator is an efficient and precise solid particle separation equipment. It is renowned for its smooth operation, low noise, and high screening efficiency. This equipment adopts a horizontally installed circular screen and moves in a unique planar cyclone motion under the drive of power, which can effectively prevent material from blocking the mesh holes and is suitable for various operations such as particle size classification and slurry filtration of materials. Due to its compact structure, good sealing performance, and ease of replacing the screen, it is widely used in numerous industries including chemical, food, medicine, and metallurgy.
Working principle
The working principle of the planar reciprocating screen is that two vibrating motors rotating in opposite directions generate a stable planar reciprocating force. This force drives the screen mesh to perform approximately circular horizontal movement, causing the materials projected onto the screen to be subjected to this rotary action, spreading, rolling and loosening uniformly from the center to the periphery. During this process, fine particles smaller than the screen holes quickly pass through the screen and separate due to the continuous rotary motion. At the same time, this motion characteristic can effectively prevent material blockage of the mesh holes. The coarse particles that fail to pass through the screen are collected and discharged at the periphery, thereby achieving efficient and precise screening.
Product Features
1. High efficiency and high precision: The materials are thoroughly rolled and dispersed, resulting in excellent screening efficiency and accuracy.
2. Strong anti-blocking advantage: The unique movement effectively cleans the screen mesh, significantly reducing blockages.
3. Smooth and quiet operation: The horizontal force is self-balanced, the equipment has low vibration and low noise.
4. Sealing and environmental protection: The fully enclosed structure effectively prevents dust from escaping.
5. Simple maintenance: The screen replacement is quick, the equipment is durable, and the maintenance cost is low.
6. Strong adaptability: There are many adjustable parameters, it can handle various materials, and has wide applications.
Product parameter
| Model | Screen Surface | Screen Deck/ Layer No. |
Feeding Size (mm) |
Amplitude (mm) |
Frequency (r/min) |
Power (kW) |
|
| Width (mm) |
Length (mm) |
||||||
| BPH1230 | 1200 | 3000 | 1-3 | <50 | 75-90 | 1450 | 5.5 |
| BPH1236 | 1200 | 3600 | 1-3 | <50 | 75-90 | 1450 | 5.5 |
| BPH1530 | 1500 | 3000 | 1-3 | <50 | 75-90 | 1450 | 5.5 |
| BPH1536 | 1500 | 3600 | 1-3 | <50 | 75-90 | 1450 | 5.5 |
| BPH1836 | 1800 | 3600 | 1-3 | <75 | 75-90 | 750 | 7.5 |
| BPH2040 | 2000 | 4000 | 1-3 | <75 | 75-90 | 750 | 11 |
Schematic diagram
Detail display

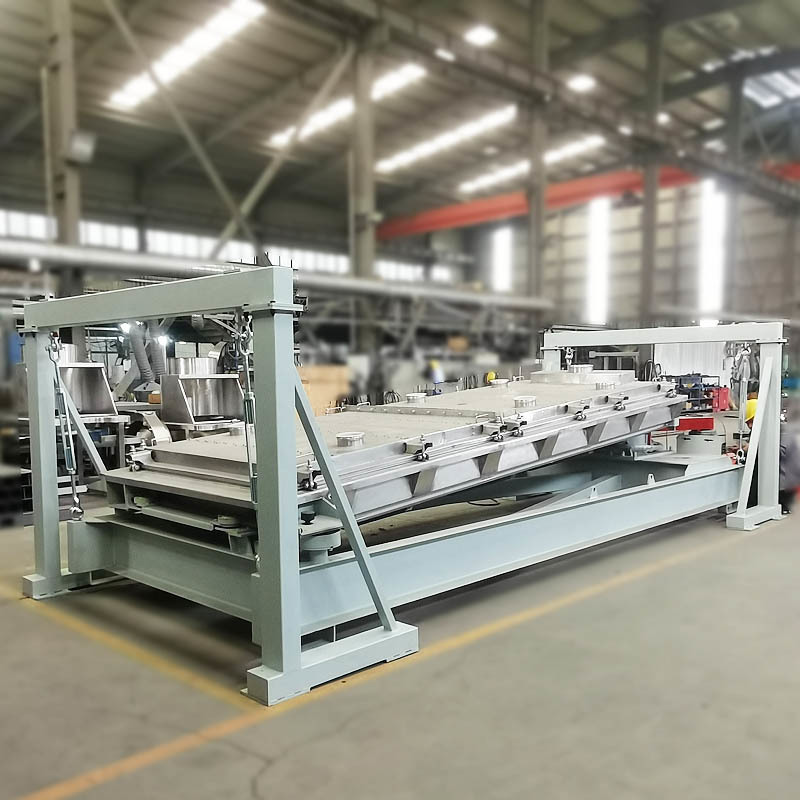

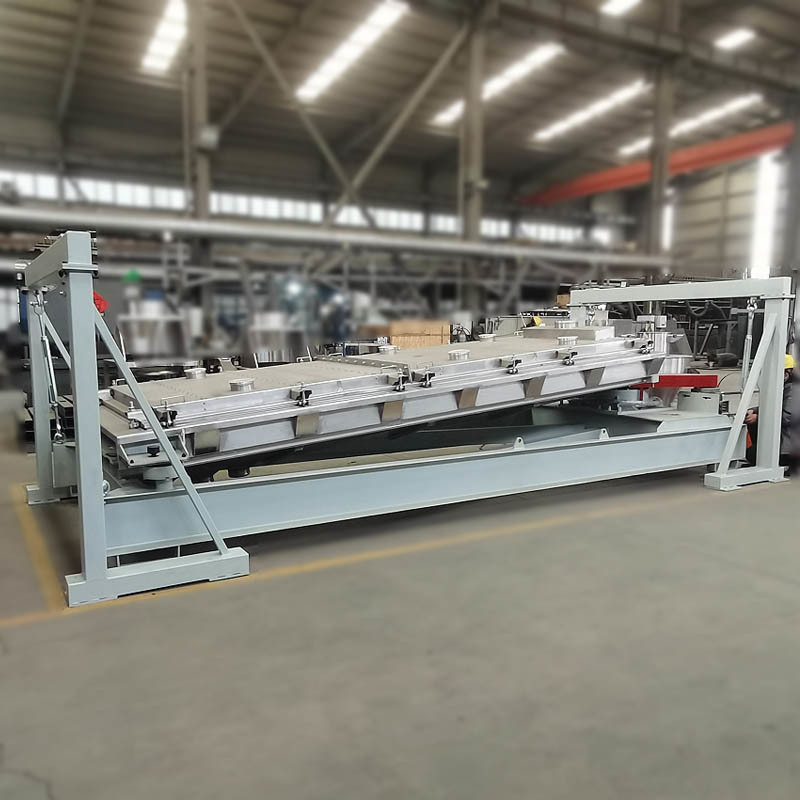

Product display
