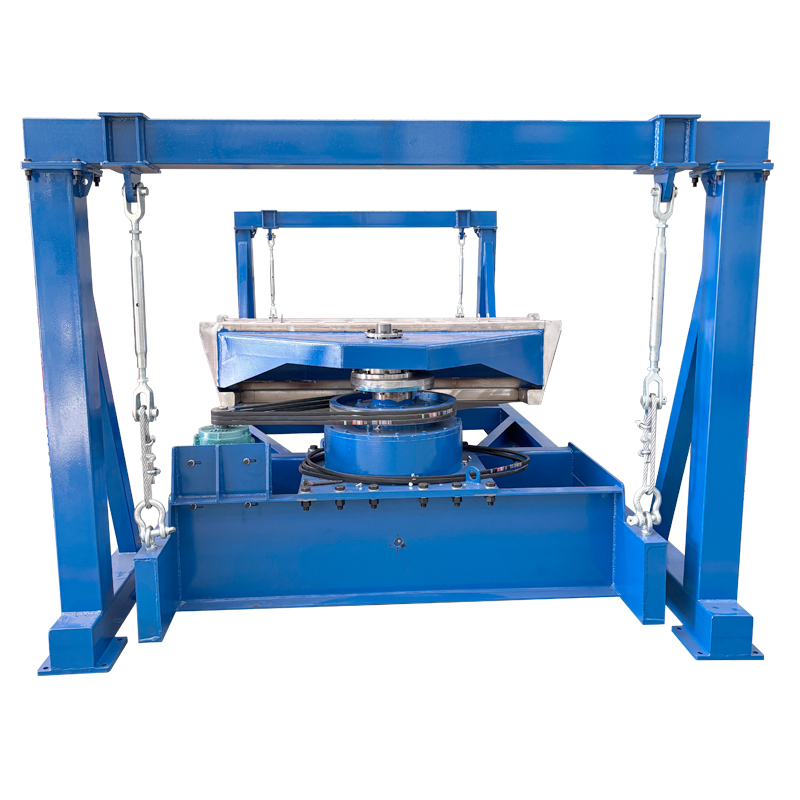

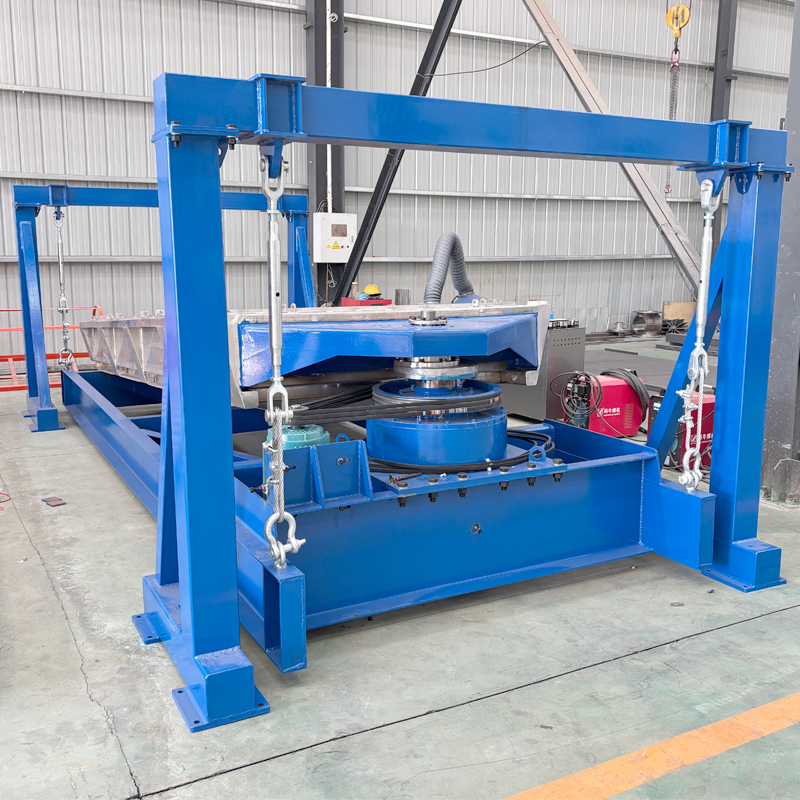

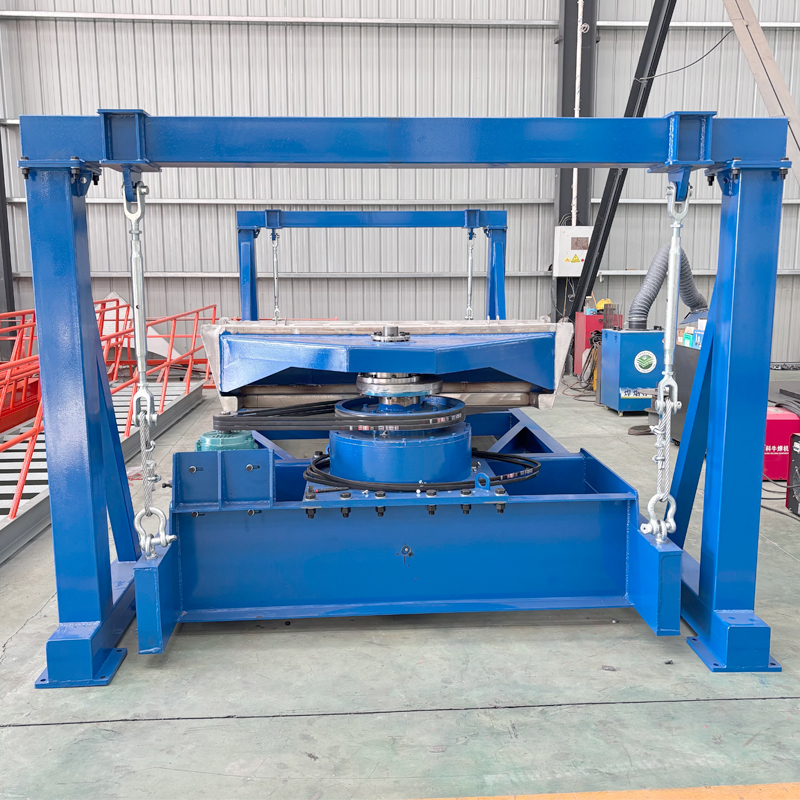

Gyratory Vibrating Screen

Product description

The planar cyclone sieve is an efficient solid particle screening equipment that achieves material classification through horizontal circular motion on the surface. Its structure usually consists of a sieve box, sieve screen, driving device and vibration damping system. It operates smoothly with low noise. This equipment is widely used in industries such as chemical engineering, food, and metallurgy, and is particularly suitable for handling materials that are easy to flow, have low specific gravity, or require fine screening. It has the characteristics of high screening efficiency, large processing capacity, easy maintenance, and can complete multiple particle size classifications simultaneously through a multi-layer sieve screen design, meeting diverse production needs.


Working principle
The core working principle of the planar cyclone sieve is the unique planar rotation motion.
The driving device drives the sieve body to perform a smooth, approximately circular trajectory movement within the horizontal plane. Under the combined action of centrifugal force, friction force and gravity, the materials on the sieve screen move forward along a spiral path resembling a involute curve on the sieve surface.
During this process, the fine materials that are smaller than the sieve holes are uniformly scattered by the rotational motion and quickly come into contact with the sieve holes to complete the sieving; while the coarse materials that are larger than the sieve holes are directed to the discharge ports at the edge of the sieve surface and discharged. This gentle and continuous rotary screening method effectively prevents the material from blocking the sieve mesh and significantly improves the screening efficiency and accuracy.

Product Features

Efficient and precise screening: The materials move uniformly and spirally on the screen surface, with thorough sieving, achieving excellent efficiency and precision.
Smooth operation and low noise: The horizontal rotary motion is stable, causing little impact on the foundation, and the equipment operates quietly.
Effective anti-blocking: The continuous movement of the materials has a self-cleaning effect, making it less likely to clog the screen, especially suitable for sticky and wet materials.
Protecting material form: The movement mode is gentle, causing little damage to fragile or crystalline materials.
Multi-layer synchronous classification: Multiple layers of screen nets can be configured for single operation to produce multiple levels of products.
Good sealing and environmental protection: Easy to design in a fully enclosed manner, effectively preventing dust from spilling out.
Durable and maintenance-friendly: The structure is reliable, the wear of the screen is uniform, the service life is long, and maintenance is simple.
